Product Summary

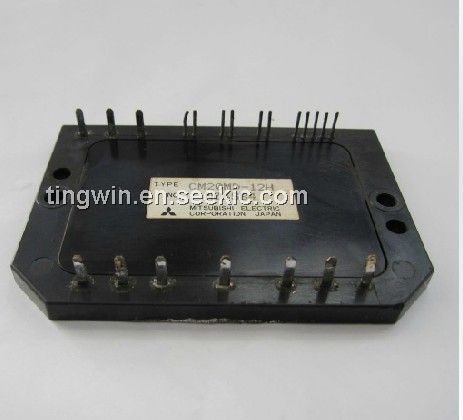

The CM20MD-12H is a medium power switching use insulated type module. The applications of the CM20MD-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics.

Parametrics

CM20MD-12H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 20A; ICM: 40A; (4)Emitter Current, IE: 20A; IEM: 40A; (5)Maximum collector dissipation, PC: 57W.

Features

CM20MD-12H features: (1)IC: 20A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module, 3φ Inverter+3φ Converter+Brake; (5)UL Recognized, Yellow Card No. E80276 (N), File No. E80271.

Diagrams

CM20MD-12H block diagram
