Product Summary

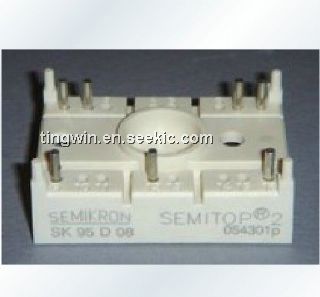

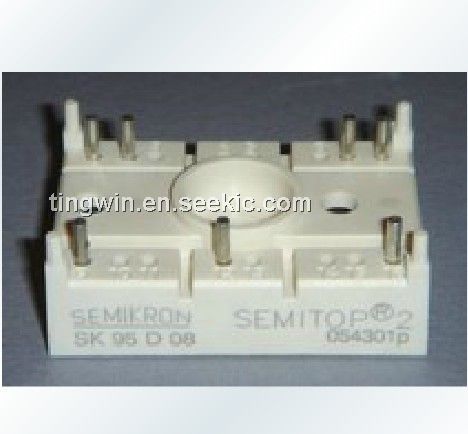

The sk95d08 is a bridge rectifier. Typical applications of the sk95d08 include: input rectifier for power supplies and rectifier.

Parametrics

sk95d08 absolute maximum ratings: (1) VRSM: 800V; (2) VRRM, VDRM: 1200V; (3) ID: 95A (Ts=80°C) ; (4) IFSM: 700A (Tvj=25°C; 10ms) , 560A (Tvj=150°C; 10ms) ; (5) VF: 1.2V (Tvj=25°C; IF=35A) ; (6) V(TO): 0.8V (Tvj=150°C) ; (7) IT: 11mΩ (Tvj=150°C) ; (8) IRD: 4mA (Tvj=150°C; VDD=VDRM; VRD=VRRM) ; (9) Tvj: -40 to +150°C; (10) Tstg: -40 to +125°C.

Features

sk95d08 features: (1) compact design; (2) one screw mounting; (3) heat transfer and insulation through direct copper bonded aluminium oxide ceramic (DCB) ; (4) up to 1600V reverse voltage; (5) high surge currents; (6) glass passived diodes chips; (7) UL recognized.

Diagrams

sk95d08 circuit
