Product Summary
The 7mbr30ne060 is an IGDB module. Applications of the 7mbr30ne060 include: Inverter for Motor Drive, AC and DC Servo Drive Amplifier and Uninterruptible Power Supply.
Parametrics
7mbr30ne060 absolute maximum ratings: (1) Collector-Emitter voltage VCES: 600V; (2) Gate-Emitter voltage VGES: ±20V; (3) Collector current IC: 30A (Continuous) , ICP: 60A (1ms) , -IC: 30A; (3) Collector power disspation Pc: 120W (1 device) ; (4) Collector-Emitter voltage VCES: 600V; (5) Gate-Emitter voltage VGES: ±20V; (6) Collector current IC: 30A (Continuous) , ICP: 60A (1ms) ; (7) Collector power disspation Pc: 120W (1 device) ; (8) Repetitive peak reverse voltage VRRM: 600V; (9) Average forward current IF (AV): 1A; (10) Surge current IFSM: 50A (10ms) ; (11) Repetitive peak reverse voltage VRRM: 800V; (12) Non-Repetitive peak reverse voltage VRSM: 900V; (13) Average output current IO: 50A (50Hz/60Hz sine wave) ; (13) Surge current (Non-Repetitive) IFSM: 350A (Tj=150°C, 10ms) ; (14) I2T (Non-Repetitive) : 648A2S (Tj=150°C, 10ms) ; (15) Operating junction temperature Tj: +150°C; (16) Storage temperature Tstg: -40 to +125°C; (17) Isolation voltage Viso: AC 2500V (AC : 1 minute) .
Features
7mbr30ne060 features: (1) High Speed Switching; (2) Low Inductance Module Structure; (3) Converter Diode Bridge Dynamic Brake Circut.

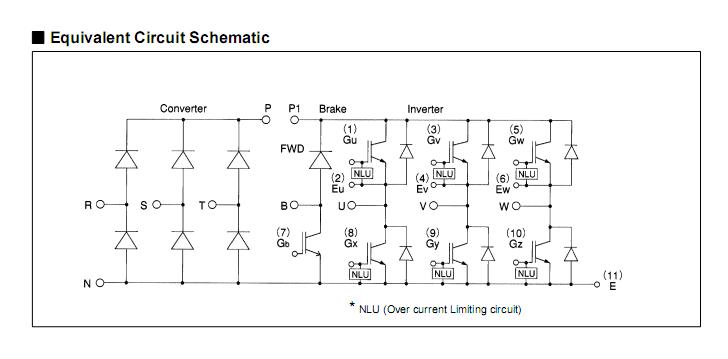

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

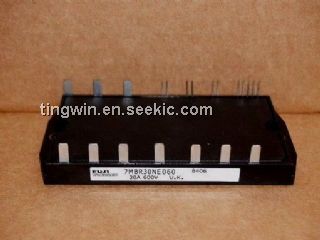

 7MBR30NE060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
