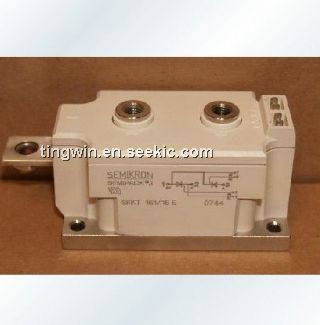

The SKKT161 12E is a thyristor / diode module. Typical applications of the SKKT161 12E are DC motor control, (e. g. for machine tools) temperature control (e. g. for ovens, chemical processes), professional light dimming (studios, theaters).
Parametrics
SKKT161 12E absolute maximum ratings: (1)ITAV sin. 180; Tc = 85 (100)℃: 156 (110)A; (2)IRMS P3/180F; T = 35 ℃; W1 / W3: 265/3 185A; (3)vT Tvj = 25 ℃; lT = 500 A: max. 1.6V; (4)VT(TO)Tvj = 125 ℃: max. 1V; (5)Idd;Ird Tvj = 125 VRD = VRRm, VDD = VDRM: max. 40mA; (6)tgd TVJ = 25 ℃; lG = 1 A: 1μS; (7)V VD = 0,67 VDRM: 2μS; (8)Il Tvj = 25 ℃; Rg = 33 O; typ. / max: 300/ 1000mA; (9)tq Tvj = 125 ℃: 150μS; (10)Ih Tvj = 25 CC; typ. / max: 150/400mA; (11)Il Tyj = 25 ℃; Rg = 33 Q; typ. / max: 300/ 1000mA; (12)Vqd Tvj = 125 ℃; d.c.: max. 0,25V; (13)IGD Tvj = 125 ℃; d.c.: max. 10mA; (14)Tvj: -40 to + 125℃; (15)Tstg: -40 to + 125℃.
Features
SKKT161 12E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63532.

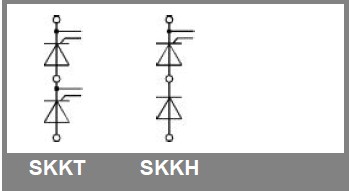

Diagrams
