Product Summary

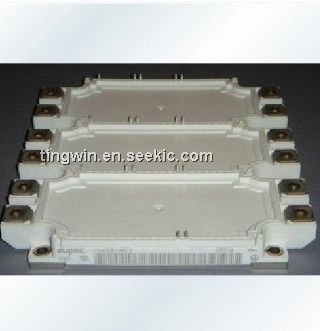

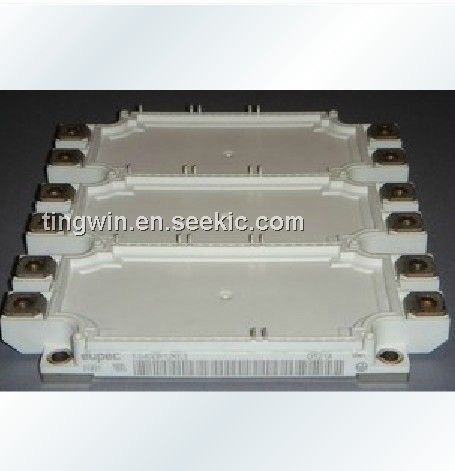

The semix503gd126hdc is a Trench IGBT module. Typical applications of the semix503gd126hdc include: AC inverter drives, UPS and Electronic Welding.

Parametrics

semix503gd126hdc absolute maximum ratings: (1) VCES: 1200V; (2) IC: 466A (Tc=25°C) , 327A (Tc=80°C) ; (3) ICnom: 300A; (4) ICRM: 600A(ICRM=2×ICnom) ; (5) tpsc: 10μs (VCC=600V, VGE≤20V, VCES≤1200V) ; (6) Tj: -40 to 150°C.

Features

semix503gd126hdc features: (1) Homogeneous Si; (2) Trench = Trenchgate technology; (3) VCE (sat) with positive temperature coefficient; (4) High short circuit capability; (5) UL recognised file no. E63532.

Diagrams

semix503gd126hdc Circuit
