Product Summary

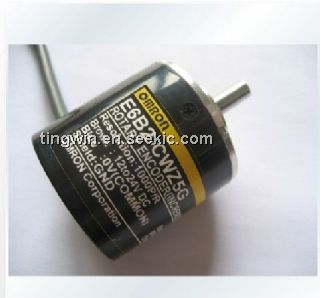

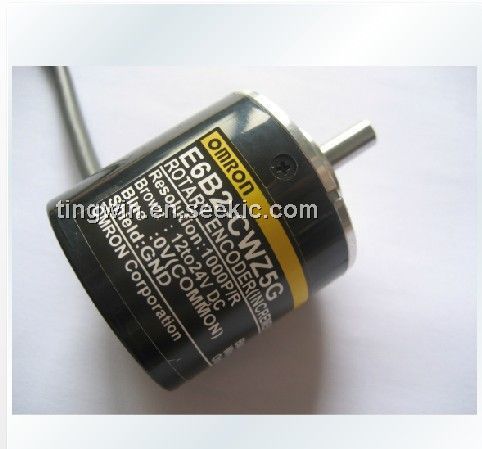

The E6B2-CWZ5G is a general-purpose incremental-type rotary encoder.

Parametrics

E6B2-CWZ5G absolute maximum ratings: (1)Power supply voltage: 5 to 24 VDC (allowable range: 4.75 to 27.6 VDC); (2)Current consumption 80 mA max.; (3)Resolution: 10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,200, 1,500, 1,800, 2,000 P/R; (4)Output phases: A, B, and Z (reversible); (5)Output configuration: Open collector; (6)Phase difference on output: 90°+/-45° between A and B (1/4T+/-1/8T); (7)Max. response frequency 100 kHz; (8)Insulation resistance 1,000 MΩ min. (at 500 VDC) between carry parts and case.

Features

E6B2-CWZ5G features: (1)A wide operating voltage range of 5 to 24 VDC (open collector model); (2)Resolution of 2,000 pulses/revolution in 40-mm housing; (3)Phase Z can be adjusted with ease using the origin indicating function; (4)A large load of 3 kgf (29.4 N) in the radial direction and 2 kgf (19.6 N) in the thrust direction is permitted; (5)The load short-circuit and reversed connection protecting circuit assures highly reliable operation.

Diagrams

E6B2-CWZ5G dimension figure
