Product Summary

The E6A2-CW3C is an incremental rotary encoder.

Parametrics

E6A2-CW3C absolute maximum ratings: (1)Supply voltage: 5 VDC -5% to 12 VDC +10%; max. 5% ripple peak-to-peak; (2)Maximum rpm: 5,000 rpm; (3)Electrical connection: Prewired with 0.5 m (1.64 ft) length cable; (4)Weight Approx. 35 g (1.2 oz); (5)Ambient humidity: 35% to 85% RH; (6)Vibration resistance Mechanical durability: 10 to 55 Hz, 1.5 mm double amplitude, in X, Y, and Z directions for 2 hours each; (7)Insulation resistance 10 MΩ minimum at 500 VDC between current-carrying part and housing; (8)Dielectric strength 500 VAC, 50/60 Hz for 1 minute between current-carrying part and housing.

Features

E6A2-CW3C features: (1)Wide variety of supply voltages and output forms to match input devices; (2)Models with zero index function ideal for positioning applications; (3)High resolution models (300 or 360 pulses per revolution) substantially improve measuring accuracy; (4)High response frequency and noise immunity make encoders ideal for factory automation applications.

Diagrams

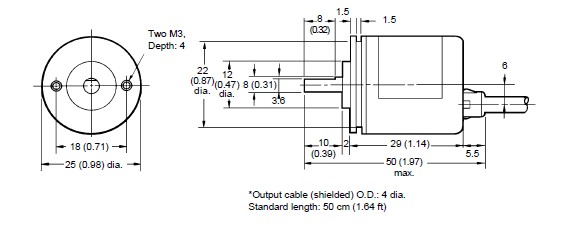

E6A2-CW3C dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E6A2-CW3C 100P/R 0.5M
E6A2-CW3C 100P/R 0.5M


ENCODER ROTARY 5-12V 100RES .5M

Data Sheet

0-1: $133.11
E6A2-CW3C 100P/R 2M
E6A2-CW3C 100P/R 2M


ENCODER ROTARY 5-12V 100RES 2M

Data Sheet

0-1: $140.94
E6A2-CW3C 200P/R 2M
E6A2-CW3C 200P/R 2M

Omron Industrial

Controllers Photoelectric

Data Sheet

0-1: $175.01
1-5: $163.50
5-10: $158.32
10-20: $155.44
E6A2-CW3C 200P/R 0.5M
E6A2-CW3C 200P/R 0.5M


ENCODER ROTARY 5-12V 200RES .5M

Data Sheet

0-1: $133.11
