Product Summary

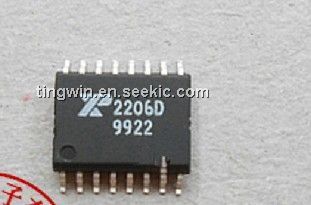

The XR2206D is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected externally over a range of 0.01Hz to more than 1MHz. The applications of the XR2206D include: Waveform Generation, Sweep Generation, AM/FM Generation, V/F Conversion, FSK Generation, Phase-Locked Loops (VCO).
Parametrics
XR2206D absolute maximum ratings: (1)Power Supply: 26V; (2)Power Dissipation: 750mW; (3)Derate Above 25℃: 5mW/℃; (4)Total Timing Current: 6mA; (5)Storage Temperature: -65℃ to +150℃.
Features
XR2206D features: (1)Low-Sine Wave Distortion, 0.5%, Typical; (2)Excellent Temperature Stability, 20ppm/℃, Typ.; (3)Wide Sweep Range, 2000:1, Typical; (4)Low-Supply Sensitivity, 0.01%V, Typ.; (5)Linear Amplitude Modulation; (6)TTL Compatible FSK Controls; (7)Wide Supply Range, 10V to 26V; (8)Adjustable Duty Cycle, 1% TO 99%.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XR2206D-F |
Exar |
Parity Functions 10V-26V 0.01Hz-1MHz temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||
|
XR2206DTR-F |
Exar |
Clock Generators & Support Products 10V-26V 0.01Hz-1MHz Temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||
