Product Summary

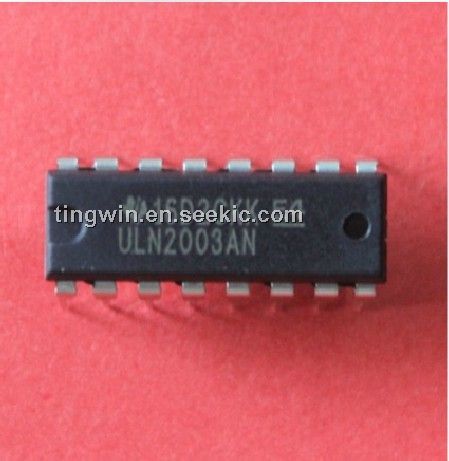

The ULN2003 is a high-voltage high-current Darlington transistor array. Each consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The ULN2003 is a general-purpose array and can be used with TTL and CMOS technologies. The ULN2003 is designed specifically for use with 14V to 25-V PMOS devices.
Parametrics
ULN2003 absolute maximum ratings: (1)Collector-emitter voltage, VCC: 50 V; (2)Clamp diode reverse voltage: 50 V; (3)Input voltage, VI: 30 V; (4)Peak collector current: 500 mA ; (5)Output clamp current, IOK: 500 mA; (6)Total emitter-terminal current: -2.5 A; (7)Operating free-air temperature range, TA: -20 to 70℃; (8)Package thermal impedance, θJA: 73℃/W; (9)Package thermal impedance, θJC: 36℃/W; (10)Operating virtual junction temperature, TJ: 150℃; (11)Lead temperature for 1.6 mm (1/16 inch) from case for 10 seconds: 260℃; (12)Storage temperature range, Tstg: -65 to 150℃.
Features
ULN2003 features: (1)500-mA-Rated Collector Current (Single Output); (2)High-Voltage Outputs: 50 V; (3)Output Clamp Diodes; (4)Inputs Compatible With Various Types of Logic; (5)Relay-Driver Applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ULN2003ADR2G |
ON Semiconductor |
Transistors Darlington DARLINGTON TRNS ARRY |
Data Sheet |
|
|
||||||||||||
 |
ULN2003AFWG(5,M) |
Toshiba |
Transistors Darlington 7CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2003AFWG(O,EL,M |
Toshiba |
Transistors Darlington 7-ch 500mA 50V 2.7 kOhm 5V CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2003AID |
Texas Instruments |
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays |
Data Sheet |
|
|
||||||||||||
|
ULN2003APW |
Texas Instruments |
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays |
Data Sheet |
|
|
||||||||||||
|
ULN2003APG(O,M) |
Toshiba |
Transistors Darlington 7-ch 500mA 50V 2.7 kOhm 5V CMOS |
Data Sheet |
|
|
||||||||||||
|
ULN2003APWE4 |
Texas Instruments |
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays |
Data Sheet |
|
|
||||||||||||
|
ULN2003AIPWE4 |
Texas Instruments |
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays |
Data Sheet |
|
|
||||||||||||
