Product Summary

The AO3401A is a P-Channel Enhancement Mode Field Effect Transistor. It uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation gate voltages as low as 2.5V. This device is suitable for use as a load switch or other general applications. Standard product AO3401A is Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

AO3401A absolute maximum ratings: (1)Power Dissipation: 1.4W or 0.9W; (2)Junction and Storage Temperature Range: -55 to 150℃; (3)Gate-Source Voltage: ±12V; (4)Drain-Source Voltage: -30V; (5)Pulsed Drain Current: -25A; (6)Continuous Drain Current: -4.3A or -3.8A.

Features

AO3401A features: (1)VDS (V)= -30V; (2)ID = -4.3A (VGS = -10V); (3)RDS(ON)< 46m&#8486; (VGS = -10V); (4)RDS(ON)< 55m&#8486; (VGS = -4.5V); (5)RDS(ON)< 80mW (VGS = -2.5V).

Diagrams

AO3401A package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

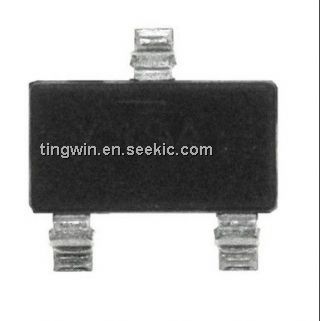

AO3401A
AO3401A


MOSFET P-CH -30V -4.3A SOT23

Data Sheet

0-1: $0.27
1-25: $0.18
25-100: $0.15
100-250: $0.12
250-500: $0.10
500-1000: $0.07
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AO3400
AO3400

Other


Data Sheet

Negotiable
AO3400A
AO3400A


MOSFET N-CH 30V 5.7A SOT23

Data Sheet

0-1: $0.29
1-25: $0.19
25-100: $0.16
100-250: $0.13
250-500: $0.11
500-1000: $0.08
AO3401
AO3401

Other


Data Sheet

Negotiable

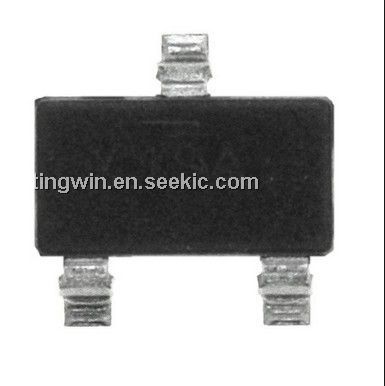

AO3401A
