Product Summary

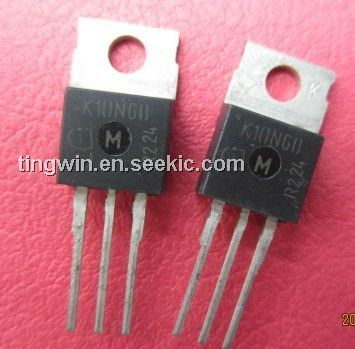

The SKP10N60A is fast IGBT in NPT-technology with soft, fast recovery anti-parallel EmCon diode.

Parametrics

SKP10N60A absolute maximum ratings: (1) Collector-emitter voltage VCE: 600V; (2) DC collector current, Ic:20A (Tc=25°C) , 10.6A (Tc=100°C) ; (3) Pulsed collector current, tp limited by Tjmax, ICpuls: 40A; (4) Turn off safe operating area Vce≤6000V, Tj≤150°C, : 40A; (5) Diode forward current Tc=25°C: 21A, Tc=100°C; (6) Diode pulsed current,tp limited by Tjmax, IFpuls: 42V; (7) Gate-emitter voltage, VGE: ±20V; (8) Short circuit withstand time VGE=15V, Vcc≤600V, Tj≤150°C, tsc: 10μs; (9) Power dissipation, Tc=25°C, Ptot: 92W; (10) Operating junction and storage temperature: -55 to +150°C.

Features

SKP10N60A features: (1) 75% lower Eoff compared to previous generation combined with low conduction losses; (2) Short circuit withstand time: 10μs; (3) Very soft, fast recovery anti-parallel EmCon diode; (4) Complete product spectrum and PSpice Models; (5) NPT-Technology for 600V applications offers.

Diagrams

SKP10N60A Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SKP10N60A
SKP10N60A

Infineon Technologies

IGBT Transistors FAST IGBT NPT TECH 600V 10A

Data Sheet

0-1: $1.80
1-10: $1.54
10-100: $1.16
100-500: $0.90
