Product Summary
The P87C511 is a single-chip control-oriented microcontroller which is fabricated on the reliable CHMOS III-E technology of Intel. The P87C511 uses the same powerful instruction set, has the same architecture, and is pin-for-pin compatible with the existing MCS 51 controller family of products. And the P87C511 has a 128 x 8 on-chip RAM.
Parametrics
P87C511 absolute maximum ratigns: (1) Ambient Temperature Under Bias: -40°C to +85°C; (2) Storage Temperature: -65°C to +150°C; (3) Voltage on EA/VPP Pin to VSS: 0V to +13.0V; (4) Voltage on Any Other Pin to VSS: -0.5V to +6.5V; (5) Maximum IOL per I/O Pin: 15mA; (6) Power Dissipation: 1.5W.
Features
P87C511 features: (1) High Performance CHMOS EPROM; (2) 24 MHz Operation; (3) 3-Level Program Memory Lock; (4) 3-Level Program Memory Lock; (5) 32 Programmable I/O Lines; (6) 64K External Program Memory Space; (7) ONCE Mode Facilitates System Testing; (8) Programmable Serial Port.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 P87C511 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|

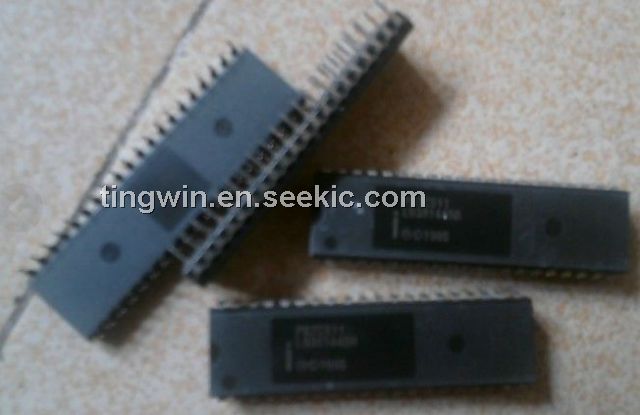

P87C511SF76 |
|
IC MCU 8BIT 5V 16MHZ OTP 40DIP |
Data Sheet |
Negotiable |
|
||||
