Product Summary

The BLM31PG500SN1L is an on-board type (DC) EMI suppression filter. The BLM31PG500SN1L is essential for noise suppression in high speed signal lines and DC power lines.

Parametrics

BLM31PG500SN1L absolute maximum ratings: (1) Impendance: 50Ω (at 100MHz) ; (2) Rated Current: 3000mA.

Features

BLM31PG500SN1L features: (1) can be used in digital interface; (2) The BLM31PG500SN1L generates an impedance from the relatively low frquencies; (3) The BLM31PG500SN1L can minimize attenuation of the signal waveform due to its sharp impendance characteristics; (4) The BLM31PG500SN1L can be used in high current circuits; (5) The BLM31PG500SN1L has a modified that minimizes stray capacitance and increases he effective frquency range.

Diagrams

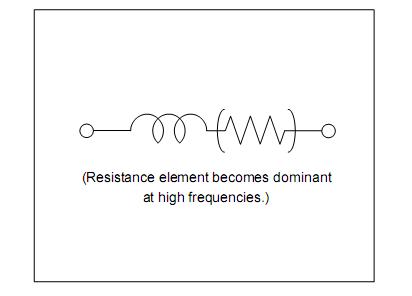

BLM31PG500SN1L Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

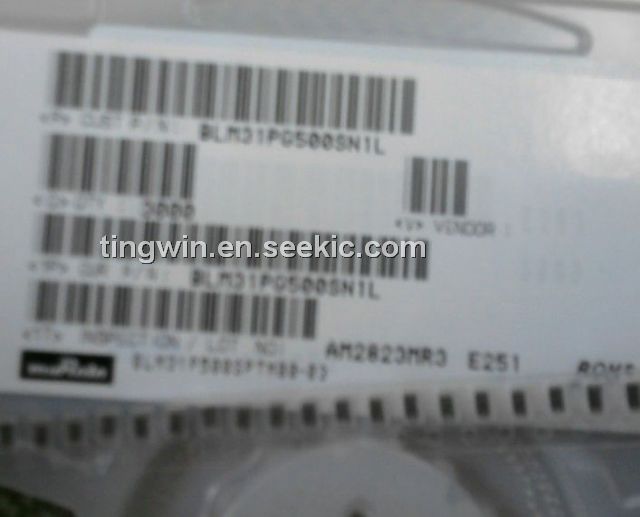

BLM31PG500SN1L
BLM31PG500SN1L
Murata
EMI Filter Beads, Chokes & Arrays 1206 50 OHM
Data Sheet
0-1: $0.35
1-50: $0.24
50-100: $0.17
100-500: $0.11
