Product Summary
The MP4303 is a power transistor module. Its applications include hammer drive, pulse motor drive and inductive load switching.
Parametrics
MP4303 absolute maximum ratings: (1)collector-base voltage: 120V; (2)collector-emitter voltage: 100V; (3)emitter-base voltage: 6V; (4)collector current: 2A; (5)continuous base current: 0.5A; (6)collector power dissipation: 4.4W; (7)junction temperature: 150℃; (8)storage temperature: -55 to 150℃.
Features

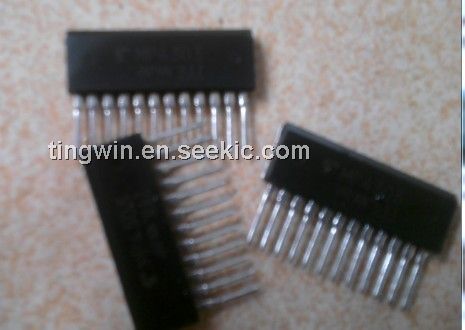

MP4303 features: (1)Small package by full molding (SIP 12 pins); (2)High collector power dissipation (4-device operation): PT= 4.4 W (Ta = 25℃); (3)High collector current: IC (DC) = 2 A (max); (4)High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A).
Diagrams
