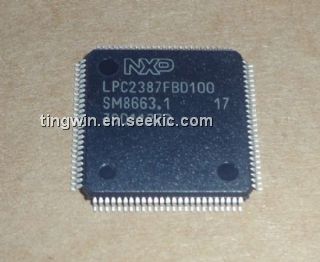

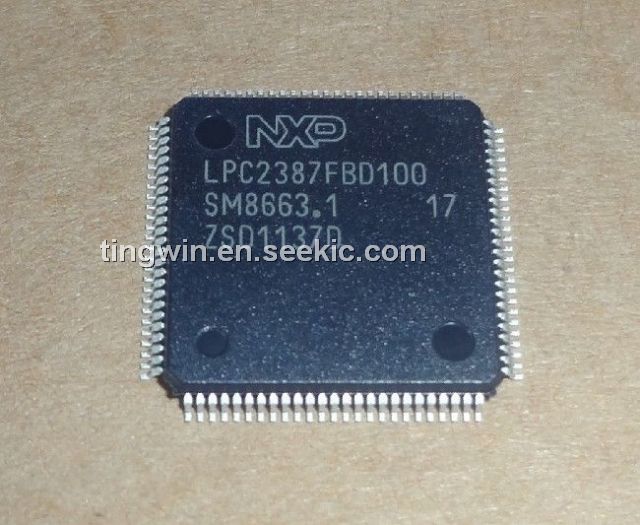

Product Summary
The LPC2387FBD100 is a microcontroller. The LPC2387FBD100 is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with 512 kB of embedded high-speed flash memory. The LPC2387FBD100 is ideal for multi-purpose serial communication applications.
Parametrics
LPC2387FBD100 absolute maximum ratings: (1) (1)supply voltage (3.3 V), VDD (3V3) : 3 to 3.6V (core and external rail) ; (2) DC-to-DC converter supply voltage (3.3V) : 3 to 3.6V; (3) VDDA analog 3.3 V pad supply voltage: -0.5 to +4.6V; (4) input voltage on pin VBAT Vi (VBAT): -0.5 to +4.6V; (5) input voltage on pin VREF Vi(VREF) : -0.5 to +4.6V; (6) analog input voltage, VIA: -0.5 to +5.1V; (7) input voltage VI: -0.5 to +6.0V (5 V tolerant I/O pins; only valid when the VDD (3V3) supply voltage is present; (8) supply current, IDD: 100mA; (9) Ground current IDD: 100mA; (10) ground current Iss: 100mA; (11) storage temperature Tstg: -45 to +125°C; (12) total power dissipation (per package) Ptot: 1.5W; (13) electro static discharge voltage Vesd: -2000 to +2000V (human body model; all pins) .
Features
LPC2387FBD100 features: (1) ARM7TDMI-S processor, running at up to 72 MHz; (2) 512 kB on-chip flash program memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access; (3) 64 kB of SRAM on the ARM local bus for high performance CPU access; (4) Advanced Vectored Interrupt Controller (VIC), supporting up to 32 vectored interrupts; (5) Standard ARM test/debug interface for compatibility with existing tools; (6) On-chip crystal oscillator with an operating range of 1 MHz to 24MHz; (7) Versatile pin function selections allow more possibilities for using on-chip peripheral functions.

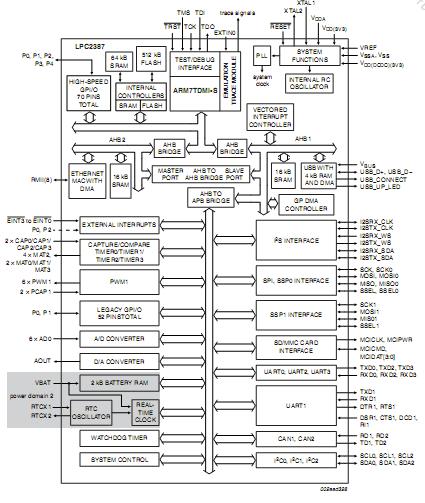

Diagrams
