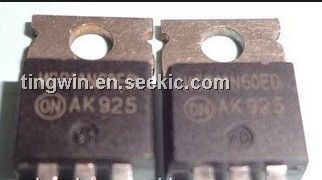

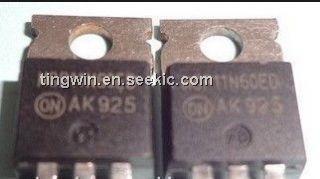

MGP11N60ED

MGP11N60ED, bipolar transistor, 11A, 600V, TO, 96W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.80 / Piece
101 ~ 300 :	2.20 / Piece

PartNumber:: MGP11N60ED

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. winny's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-09

From Other Seller

Part Number:MGP11N60ED
US $2.20 - 2.80
Quantity:

piece

Product Summary

The MGP11N60ED Insulated Gate Bipolar Transistor (IGBT) is co-package with a soft recovery ultra-fast rectifier and uses an advance ermination scheme to provide an enhanced and reliable high voltage-blocking capability. The new 600 V IGBT technologgy of the MGP11N60ED is specifically suited for applications requiring both a high temperature short circuit capability and a low VCE( on) . The MGP11N60ED provides fast switching characteristics and results in efficient operation at high frequencies.

Parametrics

MGP11N60ED absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Collector-Gate Voltage ( RGE=1.0MΩ) VCGR: 600V; (3)Gate-Emitter Voltage -Continuous VGE: ±20V; (4)Collector Current-Continuos@Tc=25°C, IC25: 15A, Current-Continuos@Tc=90°C IC90: 11A; (5)Total Power Dissipation@TC=25°C, PD: 96W, Derate above 25°C: 0.77W/°C; (6)Operating and Storage Junction Temperature Range: -55 to +150°C; (7)Short Circuit Withstand Time (VCC=400Vdc, VGE=15 Vdc, TJ=125°C, RG=20Ω) , tsc: 10μs; (8)Thermal Resistance, Junction to Case-IGBT, RθJC: 1.3°C/W, Junction to Case-Diode, RθJC:2.3°C/W , Junction to Ambient RθJC: 6.5°C/W; (9)Maximum Lead Temperature for Soldering Purposes, 1/8 from case for 5 seconds TL: 260°C.

Features

MGP11N60ED features: (1)Industry Standard TO-220 Package; (2)High Speed: Eoff=60μJ per Amp typical at 125°C; (3)High Voltage Short Circuit Capability-10μs minimum at 125°C, 400V; (4)Low On-Voltage: 2.0 V typical at 8.0A; (5)Soft Recovery Free Wheeling Diode is included in the Package; (6)Robust High Voltage Termination; (7)ESD Protection Gate¤CEmitter Zener Diode.
