Product Summary

The HCMS-2915 is a high performance CMOS 5 x 7 alphanumeric display. The HCMS-2915 is a high performance display driven by on-board CMOS ICs. Each display can be directly interfaced with a microprocessor, thus eliminating the need for cumbersome interface components. The serial IC interface of the HCMS-2915 allows higher character count information displays with a minimum of data lines. A variety of colors, font heights, and character counts gives designers a wide range of product choices for their specific applications and the easy to read 5 x 7 pixel format allows the display of uppercase, lower case, Katakana, and custom user-defined characters. The applications of the HCMS-2915 are Telecommunications equipment, Portable data entry devices, Computer peripherals, Medical equipment, Test equipment, Business machines, Avionics, Industrial controls.

Parametrics

HCMS-2915 absolute maximum ratings: (1)Logic Supply Voltage, VLOGIC to GNDLOGIC: -0.3 V to 7.0 V; (2)LED Supply Voltage, VLED to GNDLED: -0.3 V to 5.5 V; (3)Input Voltage, Any Pin to GND: -0.3 V to VLOGIC +0.3 V; (4)Free Air Operating Temperature Range TA: -40℃ to +85℃; (5)Relative Humidity (noncondensing): 85%; (6)Storage Temperature, TS: 55℃ to 100℃.

Features

HCMS-2915 features: (1)Easy to use; (2)Interfaces directly with microprocessors; (3)0.15character height in 4, 8, and 16 (2x8) character packages; (4)0.20character height in 4 and 8 character packages; (5)Rugged X- and Y-stackable package; (6)Serial input; (7)Convenient brightness controls; (8)Wave solderable; (9)Offered in five colors; (10)Low power CMOS technology; (11)TTL compatible.

Diagrams

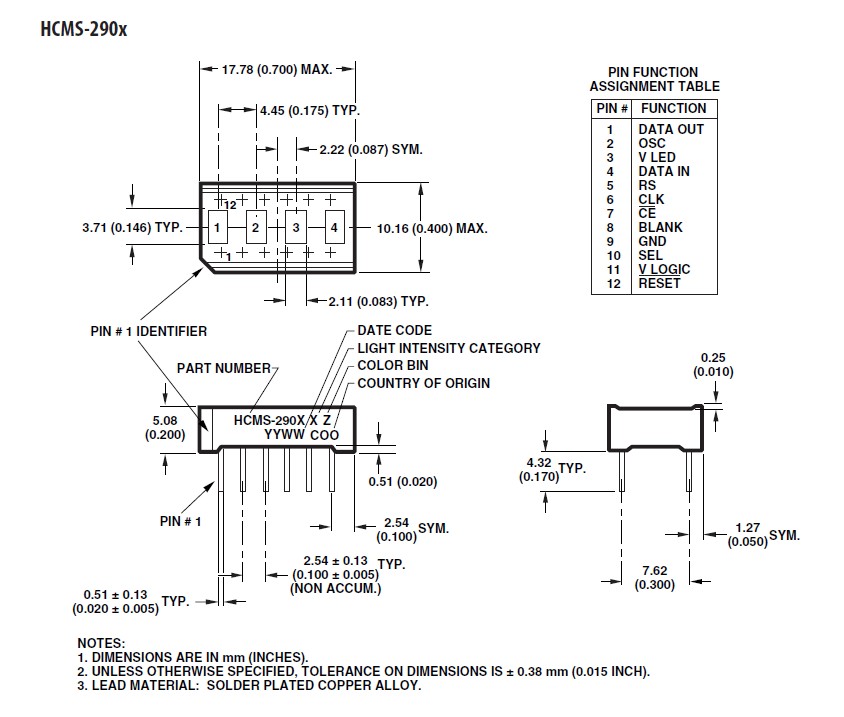

HCMS-2915 package diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCMS-2915
HCMS-2915

Avago Technologies

LED Displays & Accessories Red 637nm 1x8 Alphanumeric

Data Sheet

0-1: $26.85
1-25: $17.18
25-100: $16.11
100-250: $15.04
