Product Summary
The OV7640 is a low voltage CMOS image sensor that provides the full functionality of a single-chip VGA (640x480) camera and image processor in a small footprint package. The OV7640 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats, controlled through OmniVision Serial Camera Control Bus (SCCB) interface. Applications of the OV7640 include: Cellular and Picture Phones, Toys and PC Multimedia.
Parametrics
OV7640 absolute maximum ratings: (1) Ambient Storage Temperature: -40 to +125°C; (2) Supply Voltages (with respect to Ground) , VDD-A: 3V, VDD-IO: 4V; (3) All Input/Output Voltages (with respect to Ground) : -0.3V to VDD_IO+1V; (4) Lead Temperature, Surface-mount process: +230°C; (5) ESD Rating, Human Body model: 2000V.
Features
OV7640 features: (1) High sensitivity for low-light operation; (2) 2.5V operating voltage for embedded portable applications; (3) Standard Serial Camera Control Bus (SCCB) interface; (4) interface VGA, QVGA (sub-sampled) and Windowed outputwith Raw RGB, RGB (GRB 4:2:2) , YUV (4:2:2) and YCbCr (4:2:2) formats; (5) Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement) , anti-blooming and zero smearing.

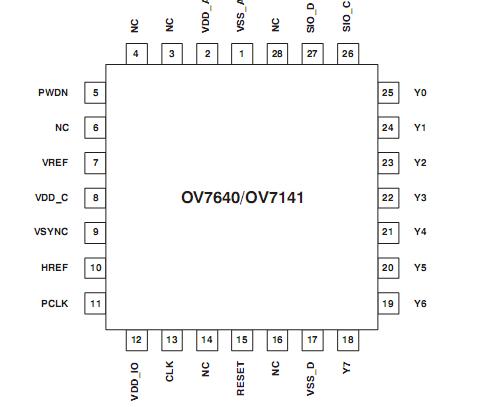

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 OV7640 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
OV7604C7 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OV7620 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OV7640 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OV7650 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OV7660 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OV7670 |
Other |
|
Data Sheet |
Negotiable |
|
||||
