Product Summary

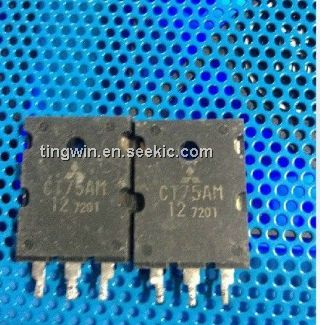

The ct75am-12 is a Mitsubishi insulated gate bipolar transistor. Applications of the ct75am-12 include: AC & DC motor controls, General purpose inverters UPS, Power supply switching, Servo controls etc.
Parametrics
ct75am-12 absolute maximum ratings: (1) Collector-emitter voltage VCES: 600V (VGE=0V) ; (2) Gate-emitter voltage VGES: ±20V (VCE=0V) ; (3) Peak gate-emitter voltage VGEM: ±30V (VCE=0) ; (4) Collector current IC: 75A; (5) Collector current (Pulsed) ICM: 150A; (6) Maximum power dissipation PC: 300W; (7) Junction temperature Tj: -40 to +150°C; (8) Junction temperature Tstg: -40 to +150°C.
Features
ct75am-12 features: (1) VCES: 600V; (2) IC: 75A; (3) High Speed Switching; (4) Low VCE Saturation Voltage.

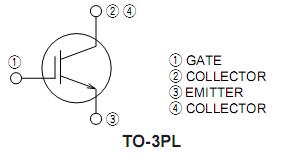

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CT75AM-12 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
