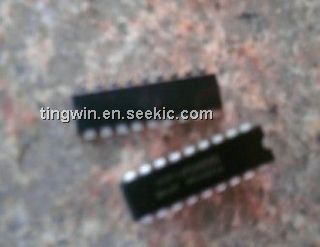

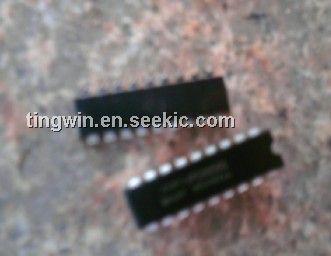

The TD62083AP is a high-voltage, high-current darlington driver comprised of eight NPN darilington pairs. The applications of the TD62083AP include: relay, hammer, lamp and display (LED) drivers.
Parametrics
TD62083AP absolute maximum ratings: (1) output sustaining voltage, VCE (SUS) , AP, AF: -0.5 to 50V, CP: -0.5 to 100V, F: -0.5 to 35V; (2) Output current/; 500mA/ch; (3) Input voltage, VIN: -0.5 to 30V; (4) Input Current IIN: 25mA; (5) Clamp Diode Reverse Voltage, AP, AF: 50V, CP: 100V, F: 35V; (6) Clamp Diode Forward Current: 500mA, CP: 400mA; (7) Operating temperature: -40 to 85°C; (8) Storage temperature Tstg: -55 to 150°C.
Features
TD62083AP features: (1) output current (single output) : 500mA (max.) ; (2) high sustaining voltage output: 50V; (3) output clamp diodes; (4) inputs compatible with various types of logic; (5) package type-AP, CP: DIP-18 pin.

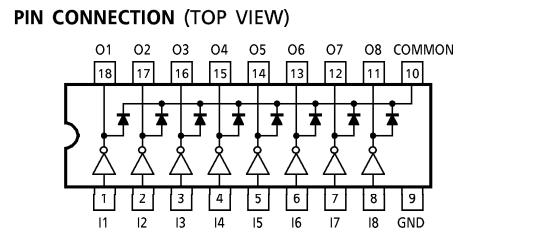

Diagrams
