Product Summary

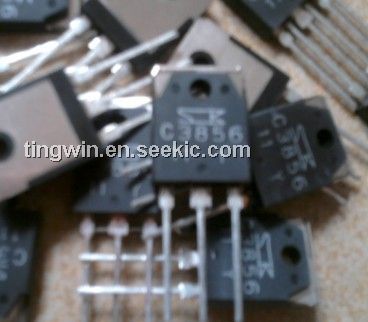

The 2sc3856 is a silicon NPN triple diffused planar transistor. Applications of the 2sc3856 include: Audio and General Purpose.
Parametrics
2sc3856 absolute maximum ratings: (1) VCBO: 200V; (2) VCEO: 180V; (3) VEBO: 6V; (4) IC: 15A; (5) IB: 4A; (6) 130W (Tc=25°C) ; (7) Tj: 150°C; (8) Tstg: -55 to +150°C.

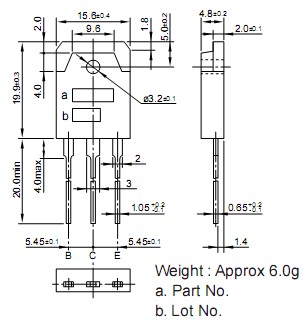

Diagrams
=
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3856 |
Other |
|
Data Sheet |
Negotiable |
|
||||
