Product Summary
The 82566dm is a single port Gigabit Ethernet Physical Layer Transceiver (PHY) that connects to its MAC through a dedicated interconnect. The 82566dm is based on Intel Gigabit PHY technology, and supports operation at data rates of 10/100/1000 Mbps. The 82566dm operates with the ICH8/ICH9 chipset that incorporates and integrates the media access controller (MAC) , which is referred to as the ICH8/ICH9 LAN. The 82566dm is packaged in a small footprint flip chip molded matrix array package (FCMMAP) with 81 balls in a 9 x 9 array. The interfaces of the 82566dm with its MAC through two interfaces: Gigabit LAN Connect Interface (GLCI) and LAN Connect Interface (LCI) .
Parametrics
82566dm absolute maximum ratings: (1) Storage Temperature Range Tstorage: -65 to 140°C; (2) 3.3V DC Digital Compatible I/O Voltage Vi: -0.5 to 4.6V, -0.2 to 1.68V (Analog 1.0V DC I/O Voltage) ; (3) Analog 1.8V DC I/O Voltage Vo: -0.3 to 2.52V; (4) 3.3V Periphery Voltage Range VCCP: -0.5 to 4.6V; (5) 1.8V Analog Voltage Range VCC1p8: -0.3 to 2.52V; (6) 1.0V DC Core/Analog DC Supply Voltage VCC1p0: -0.2 to 1.68V
Features
82566dm features: (1) IEEE 802.3ab compliant; (2) Robust end to end connections over various cable lengths; (3) Full duplex at 10, 100, or 1000 Mbps and half duplex at 10 or 100 Mbps; (4) IEEE 802.3ab Auto-negotiation with Next Page support; (5) 10/100 downshift;(6) Automatic MDI crossover; (7) Advanced Cable Diagnostics; (8) Footprint compatible with 82562V devices for a single-board dual design (Gigabit and 10/100) ; (9) LCI interface for a very low power 10/100 link; (10) Gigabit LAN Connect Interface; (11) Gigabit LAN Connect Interface supply control, which can be powered from a single 3.3V DC rail; (12) Operating temperatures: 0 to 70°C and 0 to 55°C C (with internal regulator) heat sink or forced airflow not required; (13) Power Consumption less than 1.16 Watts (silicon power) .

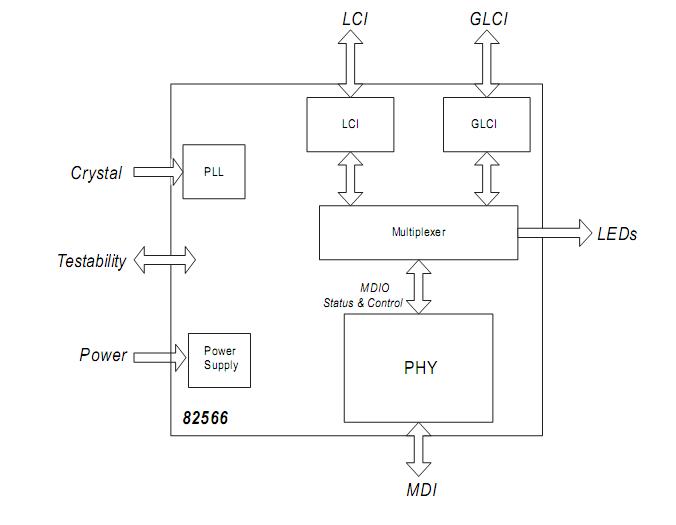

Diagrams
