Product Summary

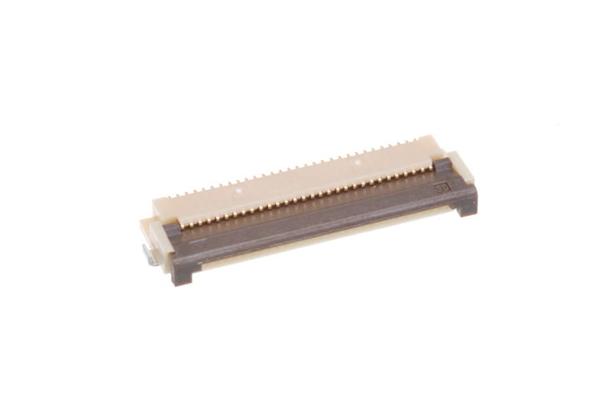

The FH12-30S-0.5SH is a 0.5mm and 1mm pitch connector for FPC/FFC. Applications of the include: Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuitboard with the LCD, HDD or other device.

Parametrics

FH12-30S-0.5SH ratings: (1) Voltage ratings: 50V AC; (2) Current rating: 0.4A DC; (3) Operating Temperature Range: -40 to +70°C; (4) Operating Humidity Range: Relative humidity, 90% max; (5) Storage Temperature Range: -10 to +50°C; (6) Storage humidity Range: Relative humidity, 90% max.

Features

FH12-30S-0.5SH features: (1) Ease of Use and Space Savings; (2) Strengthened Flip-lock Actuator; (3) Supports Thin FPC (0.18mm) ; (4) Hirose Ensures Reliability; (5) Prevention of Solder Bridge; (6) Three different assembly types.

Diagrams

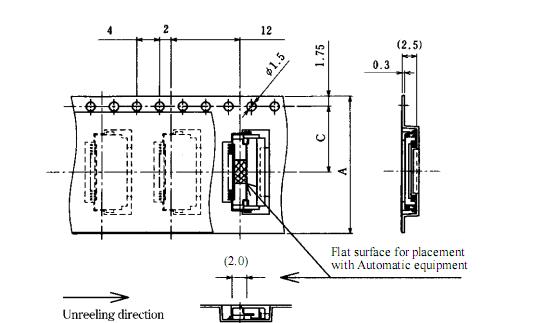

FH12-30S-0.5SH Dimension
