Product Summary

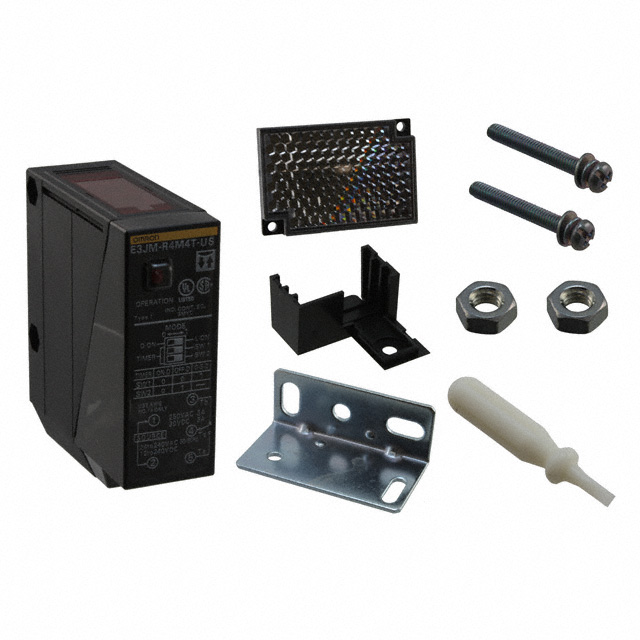

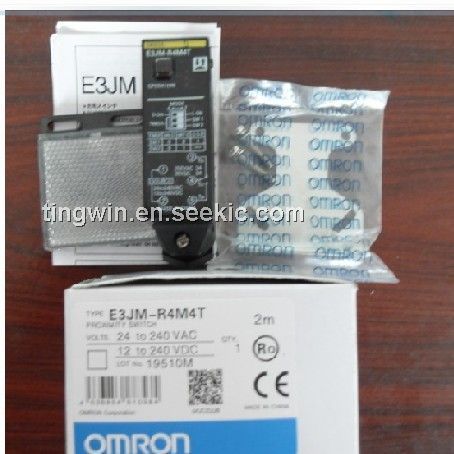

The E3JM-R4M4T is an 8mm universal AC/DC photoelectric sensor.

Parametrics

E3JM-R4M4T absolute maximum ratings: (1)Supply voltage: 24 to 240 VAC ±10%, 50/60 Hz; (2)Operation mode: Light-ON/Dark-ON, switch selectable; (3)Operation mode: Light-ON/Dark-ON, switch selectable; (4)Mutual interference protection Not: provided; (5)Indicators Light Incident (red LED) on models without timer; (6)Mounting Two side mount through hole or mounting bracket E39-L53 (supplied); (7)Connections Conduit 1/2-14 NPT; use 5-conductor cable of 6 to 8 mm (0.24 to 0.32 in) OD.

Features

E3JM-R4M4T features: (1)Easy-to-wire terminal block; (2)Built-in timer offers selectable ON-delay, OFF-delay and one-shot; (3)Relay or transistor output models; (4)Polarized, through-beam and diffuse models; (5)Light-ON/Dark-ON operation switch selectable.

Diagrams

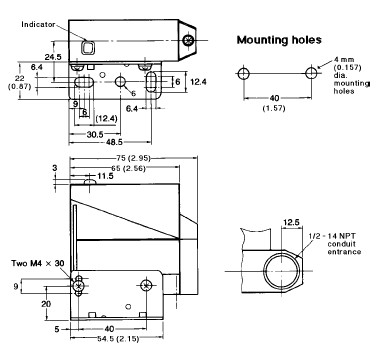

E3JM-R4M4T dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E3JM-R4M4T-G
E3JM-R4M4T-G

Omron Industrial

Photoelectric Sensors RELAY OUT TIMER 4m SENSING

Data Sheet

0-1: $114.91
1-5: $111.46
5-10: $108.12
10-25: $104.87
E3JM-R4M4TUS
E3JM-R4M4TUS


REFLECTOR

Data Sheet

0-1: $103.16
1-25: $99.72
25-50: $96.29
50-100: $92.85
100-250: $89.41
250-500: $87.69
500-1000: $85.97
E3JM-R4M4T-US
E3JM-R4M4T-US

Omron Industrial

Photoelectric Sensors PES REF 4M SPDT THR

Data Sheet

0-1: $124.02
1-2: $120.29
2-5: $116.69
5-10: $113.48
