Product Summary

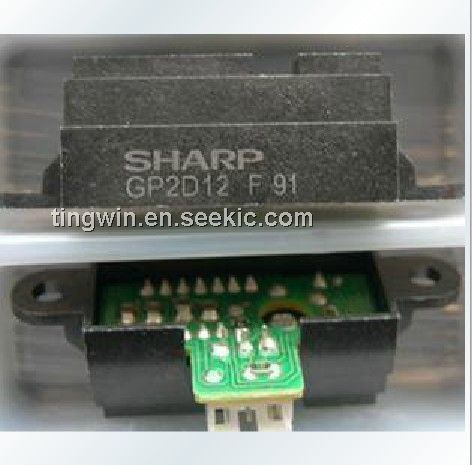

The GP2D12 is an analog output type distance measuring sensor.

Parametrics

GP2D12 absolute maximum ratings: (1)supply votlage, VCC: -0.3 to 7V; (2)output terminal votlage, VO: -0.3 to VCC+0.3V; (3)operating temperature, Topr: -10 to 60℃; (4)storage temperature, Tstg: -40 to 70℃.

Features

GP2D12 features: (1)measuring distance range, △L: 4 to 30cm; (2)output terminal voltage, Vo: 0.25 to 0.55V; 0.4V typ; (3)output voltage difference, △Vo: 1.95 to 2.55V; 2.25V typ; (4)average supply voltage, ICC: 33mA typ; 50mA max.

Diagrams

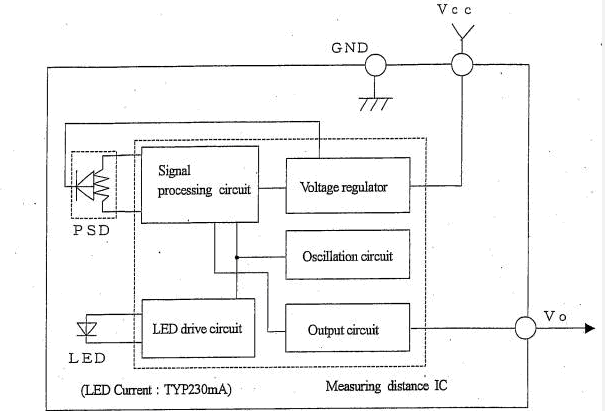

GP2D12 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
GP2D12
GP2D12


SENSOR DIST MEASUR 80CM ANLG

Data Sheet

Negotiable
GP2D120
GP2D120


SENSOR DIST MEAS 30CM ANLG W/JST

Data Sheet

Negotiable
GP2D120CJ00F
GP2D120CJ00F


SENSOR DIST MEAS 30CM ANLG W/AMP

Data Sheet

Negotiable
GP2D120XJ00F
GP2D120XJ00F

Sharp Microelectronics

Proximity Sensors Distance Measuring Sensor 4-30cm

Data Sheet

Negotiable
GP2D12J0000F
GP2D12J0000F

Sharp Microelectronics

Proximity Sensors Distance Measuring Sensor 10-80cm

Data Sheet

Negotiable
