Product Summary

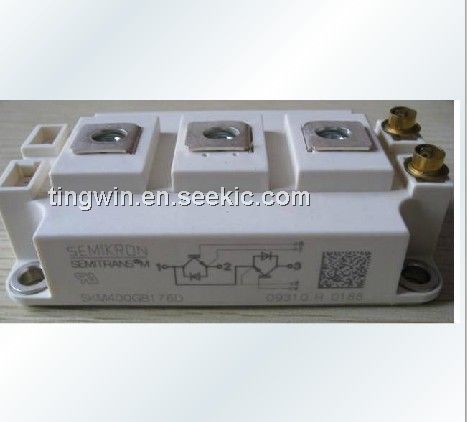

The SKM400GB176D is a trench IGBT module. The applications of the SKM400GB176D include AC inverter drives, mains 575-750V AC, public transport(auxiliary syst.), wind power.

Parametrics

SKM400GB176D absolute maximum ratings: (1)Tj= 25℃, VCES: 1700V; (2)Tj= 150℃, Tcase= 25℃, Ic: 430A; Tcase= 80℃, Ic: 310A; (3)ICRM= 2×1Cnom, ICRM: 600A; (4)VGES: ±20V; (5)VCC= 1200V; VGE≤ 20V; Tj= 125℃, VCES＜1700V, tpsc: 10μs.

Features

SKM400GB176D features: (1)Homegeneous Si; (2)Trench= Trenchgate technology; (3)VCE(sat) with positive temperature coeffcient; (4)High short circuit capability, self limiting to 6×IC.

Diagrams

SKM400GB176D block diagram
