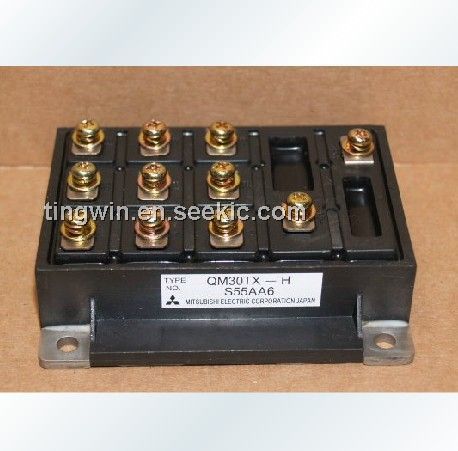

Product Summary

The QM30TX-H is a mitsubishi transistor module. It is used for AC motor controllers, UPS, DC motor controllers, NC equipment.

Parametrics

QM30TX-H absolute maximum ratings: (1)Collector-emitter voltage: 500V; (2)Collector-emitter voltage: 500V; (3)Collector-base voltage: 500V; (4)Emitter-base voltage: 7V; (5)Collector current: 30A; (6)Collector reverse current: 30A; (7)Collector dissipation: 250W; (8)Base current: 1.8A; (9)Surge collector reverse current(forward diode current): 300A; (10)Junction temperature: -40 to +150°C; (11)Storage temperature: -40 to +125°C.

Features

QM30TX-H features: (1)IC Collector current: 30A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N)File No. E80271.

Diagrams

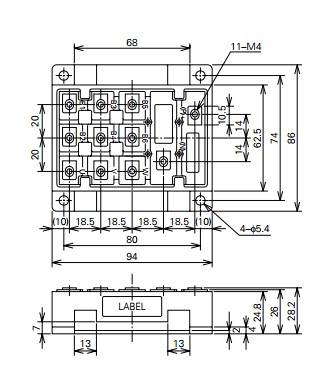

QM30TX-H package dimensions
