Product Summary

The PM50RSA060 is an intelligent power module. The applications of the device are Inverters, UPS, Motion/Servo Control and Power Supplies.

Parametrics

PM50RSA060 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -40 to 125℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Case Operating Temperature TC: -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 1.47 ~ 1.96 Nm; (5)Mounting Torque, M5 Main Terminal Screw: 1.47 ~ 1.96 Nm; (6)Module Weight (Typical): 550 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part, Tj = 125℃) VCC(prot.): 400 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.

Features

PM50RSA060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Current; Over Temperature; Under Voltage.

Diagrams

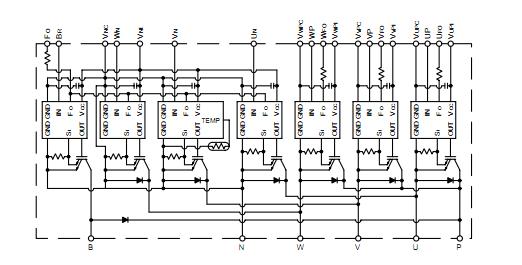

PM50RSA060 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PM50RSA060
PM50RSA060

MOD IPM 7PAC 600V 50A
Data Sheet
0-1: $99.97
