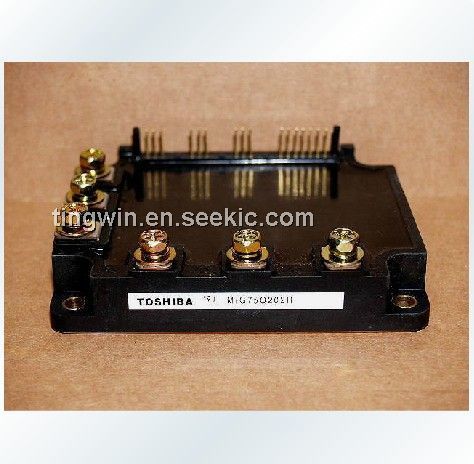

Product Summary
The MIG75Q202H is a power module. The device is suitable for high power switching applications and motor control applications.
Parametrics
MIG75Q202H absolute maximum ratings: (1)Inverter, Supply voltage, VCC: 900 V; Collector-emitter voltage, VCES: 1200 V; Collector current, IC: 75 A; Forward current, IF: 75 A; Collector power dissipation, PC: 400 W; Junction temperature, Tj: 150℃; (2)Brake, Supply voltage, VCC: 900 V; Collector-emitter voltage, VCES: 1200 V; Collector current, IC: 25 A; Reverse voltage, VR: 1200V; Forward current, IF: 25 A; Collector power dissipation, PC: 140 W; (3)Control, Junction temperature, Tj: 150℃; Control supply voltage, VD: 20 V; Input voltage, VIN: 20 V; Fault output voltage, VFO: 20V; Fault output current, IFO: 10 mA; (4)Operating temperature,TC: -20 ~ +100℃; (5)Storage temperature range, Tstg: -40 ~ +125℃; (6)Isolation voltage, VISO: 2500V.
Features
MIG75Q202H features: (1)Integrates inverter, brake power circuits & control circuits (IGBT drive units, protection units for over-current, realtime-current-control (RTC), under-voltage & over-temperature) in one package; (2)The electrodes are isolated from case; (3)High speed type IGBT: VCE (sat) = 3.5 V (Max), toff = 2.8 μs (Max), trr = 0.21 μs (Max); (4)Package dimensions : TOSHIBA 2-110A1A; (5)Weight: 520g.

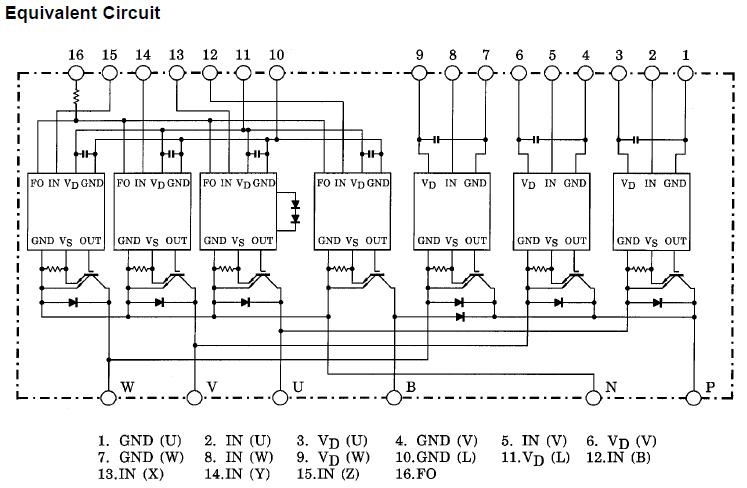

Diagrams
