Product Summary

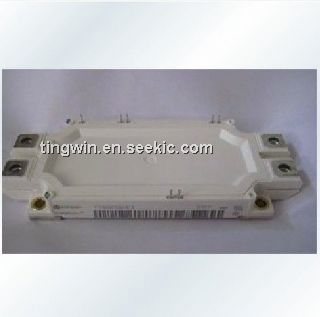

The ff600r06me3 is an EconoDUAL3 module with Trench/Fieldstop IGBT3 and Emitter Controlled 3 diode and NTC. Applications of the ff600r06me3 include: high power converters, motor drives, servo drives, UPS systems and wind turbines.
Parametrics
ff600r06me3 absolute maximum ratings: (1) collector-emitter voltage VCES: 600V (Tvj=25°C) ; (2) DC-collector current IC nom: 450A (Tc=50°C, Tvj=175°C) , IC: 550A (Tc=25°C, Tvj=175°C) ; (3) repetitive peak collector current ICRM: 900A (tp=1ms) ; (4) total power dissipation Ptot: 1250W (Tc=25°C, Tvj=175°C) ; (5) gate-emitter peak voltage VGES: ±20V.
Features
ff600r06me3 features: (1) Trecnch IGBT3; (2) Tvj op=150°C; (3) VCE sat with positive temperature coefficient; (4) high power density; (5) isolated base plate; (6) standard housing.

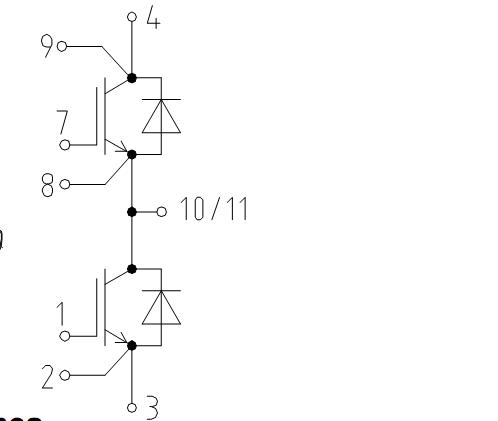

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FF600R06ME3 |
Infineon Technologies |
IGBT Modules IGBT 600V 600A |
Data Sheet |
|
|
||||||||||||
