Product Summary

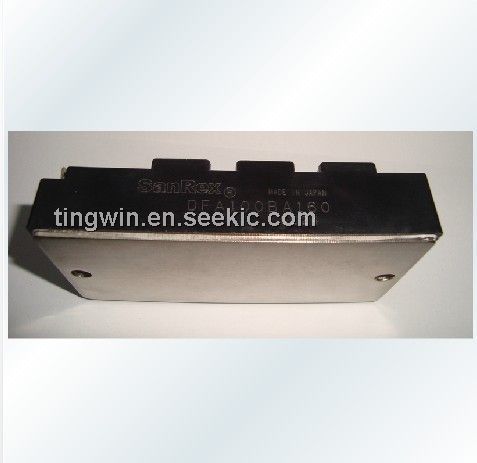

The dfa100ba160 is a SanRex Power Module. The dfa100ba160 is complex isolated module which is designed for rash current circuit. The dfa100ba160 contains six diodes connected in a three phase bridge configuration, and a thyristor connected to a direct current line. Applications of the dfa100ba160 include: Inverter for AC or DC motor control, Current stabilized power supply, Switching power supply.
Parametrics
dfa100ba160 absolute maximum ratings: (1) Repetitive Peak Reverse Voltage VRRM: 1600V; (2) Non-Repetitive Peak Reverse Voltage VRSM: 1700V; (3) Output Current (D.C.) ID: 100A (Three phase full wave, Tc=98°C) ; (4) Surge forward current IFSM: 1186/1300A (cycle, 50/60Hz , peak value, non-repetitive) ; (5) Operating Junction Temperature Tj: -40 to +150°C; (6) Storage Temperature Tstg: -40 to +125°C; (7) Isolation Breakdown Voltage (R.M.S.) VISO: 2500V (A.C. 1minute) .
Features
dfa100ba160 features: (1) This Module is designed very compactly. Because diode module and thyristor put together; (2) This Module is also isolated type between electorode terminal and mounting base. So you can put this Module and other one together in a same fin.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DFA100BA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||
