Product Summary

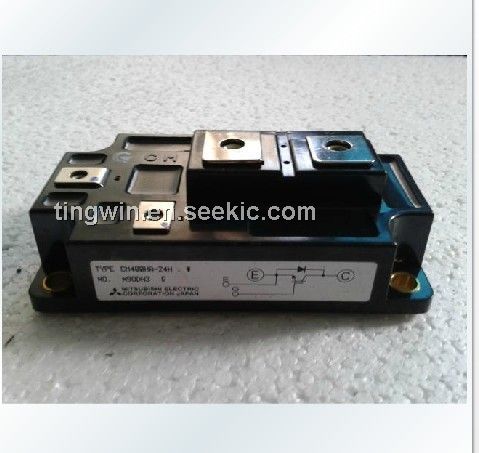

The CM400HA-24 is an IGBT module. It is designed for use in switching applications. The CM400HA-24 consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HA-24 are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM400HA-24 absolute maximum ratings: (1)Junction Temperature: -40℃ to 150℃; (2)Storage Temperature: -40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (Tc = 25℃): 400 Amperes; (6)Peak Collector Current (Tj≤ 150℃): 800Amperes; (7)Emitter Current (Tc = 25℃): 400Amperes; (8)Peak Emitter Current: 800Amperes; (9)Maximum Collector Dissipation (Tc = 25℃): 2800Watts; (10)Mounting Torque, M6 Main Terminal: 1.96 to 2.94 N.m; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 N.m; (12)Mounting Torque, M4 Terminal: 0.98 to 1.47 N.m; (13)Weight: 400 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
CM400HA-24 features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

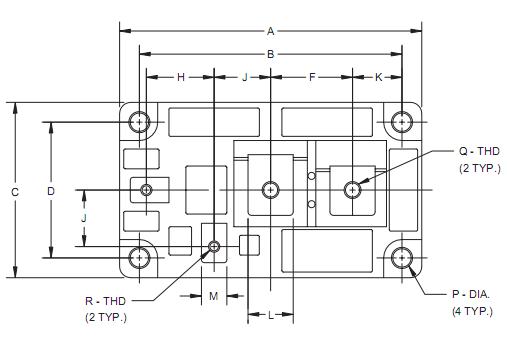

Diagrams
