Product Summary

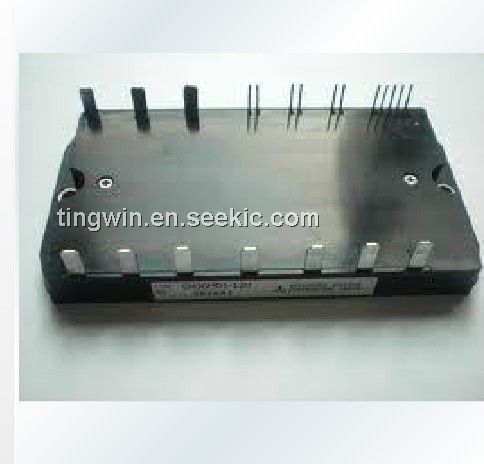

The CM30MD-12H is a Mitsubishi IGBT module for AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics.
Parametrics
CM30MD-12H absolute maximum ratings: (1)VCES, Collector-emitter voltage: 600V; (2)VGES, Gate-emitter voltage: ±20V; (3)Collector Current: 30A; (4)Emitter Current: 30A; (5)Maximum collector dissipation: 66W.
Features
CM30MD-12H features: (1)IC: 30A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module; (5)UL Recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM30MD-12H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
