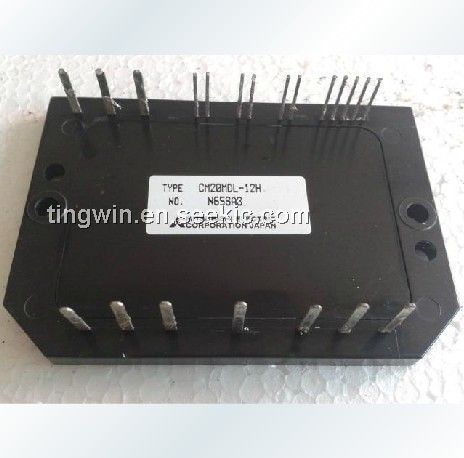

Product Summary

The CM20MD1-12H is a medium power switching use flat-base type module. The applications of the CM20MD1-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.

Parametrics

CM20MD1-12H absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 600V; (2)Gate-emitter voltage, C-E Short, VCES: ±20V; (3)Collector Current, TC = 25℃, IC: 20A; PULSE, ICM: 40A; (4)Emitter Current, TC = 25℃, IE: 20A; PULSE, IEM: 40A; (5)Maximum collector dissipation, TC = 25℃, PC: 57W.

Features

CM20MD1-12H features: (1)IC: 20A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module, 3φ Inverter+3φ Converter+Brake; (5)UL Recognized.

Diagrams

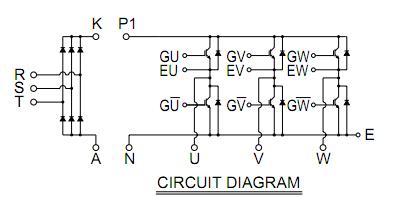

CM20MD1-12H block diagram
