Product Summary

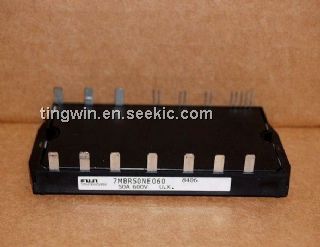

The 7MBR50NE060 is a Power Integrated Module.
Parametrics
7MBR50NE060 absolute maximum ratings: (1)Collector-Emitter Voltage(Inverter): 600V; (2)Gate -Emitter Voltage(Inverter): ± 20V; (3)Collector Power Dissipation(Inverter): 200W; (4)Collector Current-IC(Inverter): 50A; (5)Collector Current-IC PULSE(Inverter): 100A; (6)Collector Current--IC PULSE(Inverter): 50A; (7)Operating Junction Temperature: +150℃; (8)Storage Temperature: -40 ~ +125℃; (9)Isolation Voltage: 2500 V; (10)Mounting Screw Torque: 1.7 Nm.
Features
7MBR50NE060 features: (1)Included Rectifier and Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function ( ~ 3 Times Rated Current ).

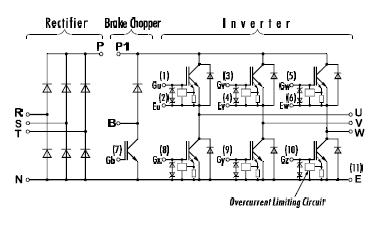

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 7MBR50NE060 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
