Product Summary

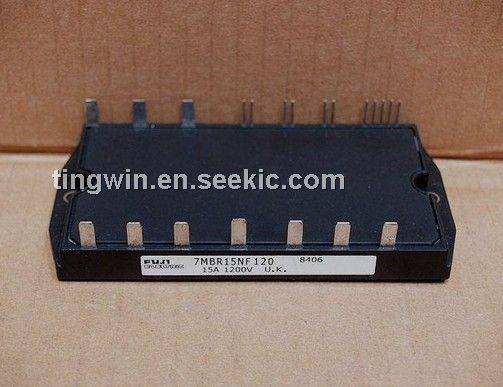

The 7MBR15NF120 is an IGBT module. The applications of the device includle inverter for motor drive, AC and DC servo drive amplifier and uninterruptible power supply.

Parametrics

7MBR15NF120 absolute maximum ratings: (1)VCES: 1200V; (2)VGES: ±20V; (3)IC: 15A; (4)IC pulse: 30A; (5)-IC: 15A; (6)PC: 120W; (7)VCES: 1200V; (8)VGES: ±20V; (9)IC: 10A; (10)IC pulse: 25A; (11)PC: 88W; (12)VRRM: 1600V; (13)VRSM: 1700V; (14)IO: 25A; (15)IFSM: 320A; (16)Tj: 150℃; (17)Tstg: -40 to 125℃; (18)Viso: AC2500V; (19)mounting: 1.7Nm.

Features

7MBR15NF120 features: (1)high speed switching; (2)voltage drive; (3)low inductance module structure; (4)converter diode bridge dynamic brake circuit.

Diagrams

7MBR15NF120 equivalent circuit
