Product Summary

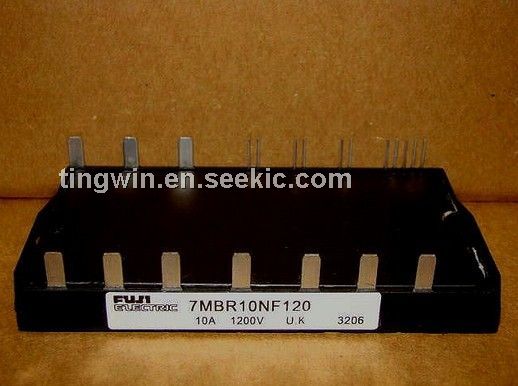

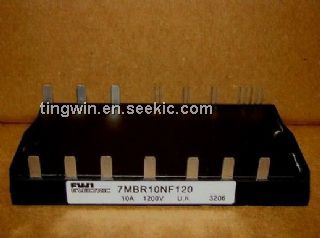

The 7MBR10NF120 is an IGBT module. The applications of the 7MBR10NF120 include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBR10NF120 absolute maximum ratings: (1)Collector-Emitter voltage, VCGS: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, IC: 25A; ICP: 50A; -IC: 25A; (4)Collector power disspation, PC: 200W; (5)Collector-Emitter voltage, VCES: 1200V; (6)Gate-Emitter voltage, VGES: ±20V; (7)Collector current, IC: 15A; ICP: 30A; (8)Collector power disspation, PC: 120W; (9)Repetitive peak reverse voltage: 1200V; (10)Average forward current, IF(av): 1A; (11)Surge current, IFSM: 50A.

Features

7MBR10NF120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams

7MBR10NF120 block diagram
