Product Summary

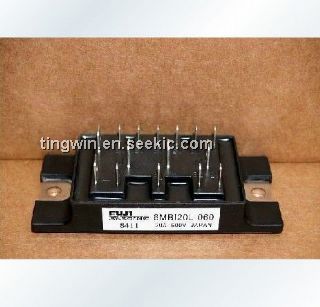

The 6mbi20l-060 is an L series IGBT module. Applications of the 6mbi20l-060 include: inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.

Parametrics

6mbi20l-060 absolute maximum ratings: (1) collector-emitter voltage VCES: 600V; (2) collector current IC: 20A (Continuous), ICpulse: 40A (1ms) , -IC: 20A (Continuous), -ICpulse: 40A (1ms) ; (3) Max. power dissipation PC: 80W; (4) Operating temperature Tj: +150°C; (5) Storage temperature Tstg: -40 to +125°C; (6) Isolation voltage Visol: 2500V (AC. 1min.) ; (7) Gate-emitter voltage VGES: ±20V.

Features

6mbi20l-060 features: (1) high speed switching; (2) low saturation voltage; (3) voltage drive.

Diagrams

6MBI20L-060 Equivalent Circuit
