Product Summary

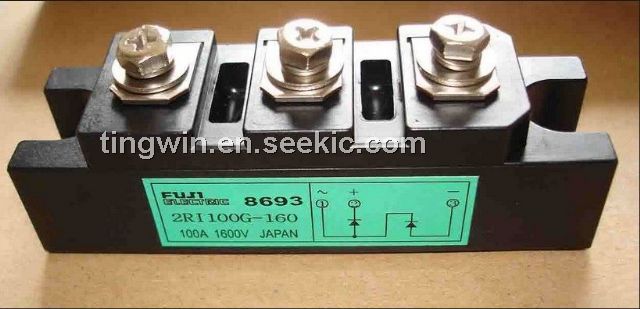

The 2ri100g-160 is a power diode module. Applications of the 2ri100g-160 include: inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers and general purpose DC power supply units.

Parametrics

2ri100g-160 absolute maximum ratings: (1) Repetitive peak reverse voltage VRRM: 1600V; (2) Non-repetitive peak reverse voltage VRSM: 1760V; (3) Average output current Io: 30A (50/60Hz sinewave, Tc=98°C) ; (4) Surge current IFSM: 1200A (rated load conditions; 10ms) ; (5) I2t: 1600A2S (rated load conditions) ; (6) Junction temperature Tj: -40 to +150°C; (7) Storage temperature Tstg: -40 to +125°C.

Features

2ri100g-160 features: (1) All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2) The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3) 6 diode chips are connected to the 3-phase bridge rectifying circuit inside the module-a cost-effectiv feature.

Diagrams

2RI100G-160 Inner Circuit
