Product Summary
The 2MBI1200UG-170 is an IGBT MODULE (U series). Applications include Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial machines, such as Welding machines.
Parametrics
2MBI1200UG-170 absolute maximum ratings: (1)Collector-Emitter voltage: 1700V; (2)Gate-Emitter voltage: ±20V; (3)Collector Power Dissipation: 6250W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 3400V.
Features
2MBI1200UG-170 features: (1)High speed switching; (2)Voltage drive; (3)Low Inductance module structure.

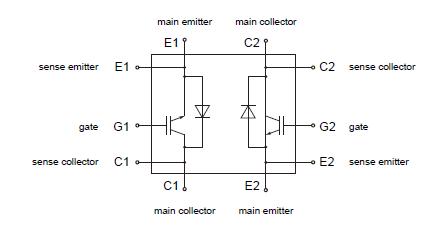

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI1200UG-170 |
Other |
|
Data Sheet |
Negotiable |
|
||||
