Product Summary

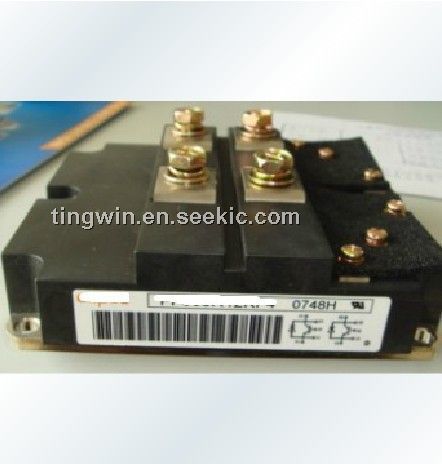

The 2MBI1200U4G-170 is an IGBT MODULE (U series). Applications include Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial machines, such as Welding machines.

Parametrics

2MBI1200U4G-170 absolute maximum ratings: (1)Collector-Emitter voltage: 1700V; (2)Gate-Emitter voltage: ±20V; (3)Collector Power Dissipation: 6250W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 3400V.

Features

2MBI1200U4G-170 features: (1)High speed switching; (2)Voltage drive; (3)Low Inductance module structure.

Diagrams

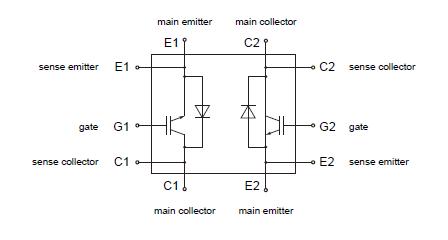

2MBI1200U4G-170 Equivalent Circuit Schematic
