Product Summary

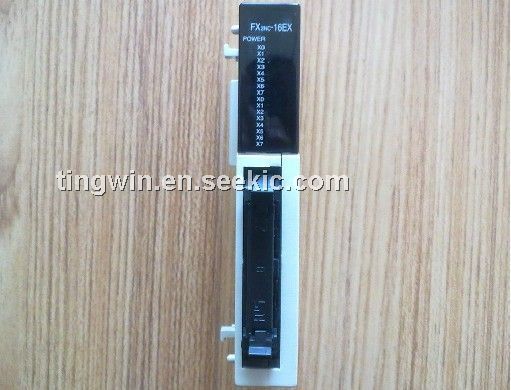

The FX2NC-16EX is a programmable controller. It is both highly compact and technologically advanced, boasting superb performance and sophisticated features. It increases your creativity by making your imagination come to life in a comfortable operating environment. Truly a new world for micro programmable controllers.
Parametrics
FX2NC-16EX general specifications: (1)Ambient temperature Use: 0 to 55°C, Storage: -20 to +70°C; (2)Ambient humidity Use: 35 to 85% RH (no condensation); (3)Vibration resistance: Shall conform to JIS C0911, 10 to 55Hz, 0.5mm (maximum 0.5G, DIN rail) in all three axis directions for 2 hoursImpact resistance; (4)Impact resistance: Shall conform to JIS C0912, 10G three times each in all three axis directions; (5)Noise resistance: Noise voltage 1000VP-P on a noise simulator with a noise width of 1μsec and a frequency of 30 to 100Hz; (6)Dielectric strength AC 1500V for one minute.
Features
FX2NC-16EX features: (1)Input signal voltage: 24VDC+20%-15%; (2)Input signal current: 7mA/24VDC; (3)Input ON current: 4.5mA minimum; (4)Input OFF current: 1.5mA maximum.
Diagrams
