Product Summary

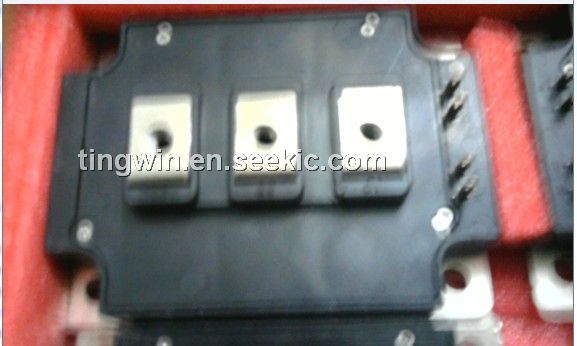

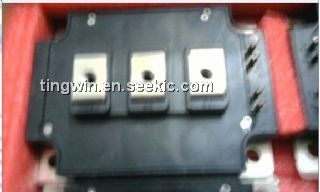

The pm50rha120 is a Mitsubishi intelligent power module. The pm50rha120 is in flat-base insulated package. Applications of the pm50rha120 include: general purpose inverter, servo drives and other motor controls.
Parametrics
pm50rha120 absolute maximum ratings: (1) supply voltage Vcc: 900V (Applied between: P-N) ; (2) Supply voltage (surge) VCC (surge) : 1000V; (3) Collector-emitter Voltage VCES: 1200V; (4) Collector current ±IC: 50A (Tc=25°C) ; (5) Collector current (peak) ±Icp: 100A (Tc=25°C) ; (6) Collector dissipation (Tc=25°C) Pc: 416W; (7) Junction temperature Tj: -20 to +150°C.
Features
pm50rha120 features: (1) 50A, 1200V current-sense IGBT type inverter; (2) monolithic gate drive&protection logic; (3) detection, protection&statusindication circuits for over-current, short-circuit, over-temperature&under-voltage; (4) acoustic noise-less 7.5kW class inverter application; (5) UL recognized.
Diagrams
