Product Summary

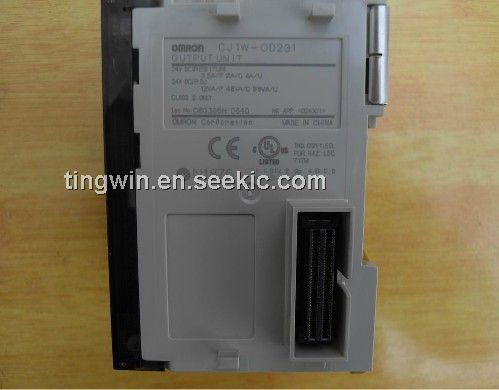

The CJ1W-OD231 is a 16-point Contact Output Unit with Terminal Block. It receives the results of output instructions from the CPU Unit and perform ON/OFF control for external devices.
Parametrics
CJ1W-OD231 absolute maximum ratings: (1)Max. Switching Capacity: 2 A 250 VAC (cosφ = 1), 2 A 250 VAC (cosφ = 0.4), 2 A 24 VDC (8 A/Unit); (2)Min. Switching Capacity: 1 mA 5 VDC; (3)Relays: NY-24W-K-IE (Fujitsu Takamizawa Components, Ltd.), Cannot be replaced; (4)ON Response Time: 15 ms max.; (5)OFF Response Time: 15 ms max.; (6)Number of Circuits: 16 points/common, 1 circuit; (7)Insulation Resistance: 20 MΩ between external terminals and the GR terminal (500 VDC); (8)Dielectric Strength: 2,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max.; (9)Internal Current Consumption: 110 mA 5 VDC max.; 96 mA 24 VDC max. (6 mA × No. of ON points); (10)Weight: 170 g max.
Features
CJ1W-OD231 features: (1)High-speed output models are available, meeting versatile applications.ON Response Time: 15μs, OFF Response Time: 80μs; (2)Output Units are available with any of three output types: relay contact outputs, triac outputs, or transistor outputs; (3)For transistor outputs, select from sinking outputs or sourcing outputs; (4)Output Units with load short-circuit protection are also available; (5)Select the best interface for each application: Fujitsu connectors or MIL connectors; (6)A wide variety of Connector-Terminal Block Conversion Units are available to allow you to easily wire external output devices.

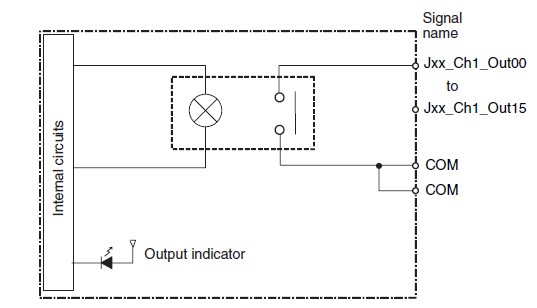

Diagrams
