Product Summary
The IRM-8751 is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology.The demodulated output signal of the IRM-8751 can directly be decoded by a microprocessor. Applications of the IRM-8751 include: Optical switch, AV instruments such as Audio, TV, VCR, CD, MD, etc. , Home appliances such as Air-conditioner, Fan , etc., the other equipments with wireless remote control, CATV set top boxes and Multi-media Equipment.
Parametrics
IRM-8751 absolute maximum ratings: (1) Supply Voltage Vcc: 0 to 6V; (2) Operating Temperature Topr: -25 to +85°C; (3) Storage Temperature Tstg: -45 to +85°C; (4) Soldering Temperature Tsol: 260°C. (4mm from mold body less than 10 seconds) .
Features
IRM-8751 features: (1) High protection ability against EMI; (2) Oval lens to improve the receive angles; (3) Line-up for various center carrier frequencies; (4) Low voltage and low power consumption; (5) High immunity against ambient light; (6) Photodiode with integrated circuit; (7) TTL and CMOS compatibility; (8) Long reception distance; (9) High sensitivity.

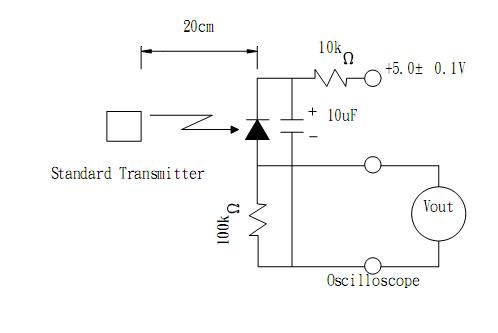

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRM-8751 |
Everlight |
Infrared Receivers Infrared Remote |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-8751-1 |
Everlight |
Infrared Receivers Infrared Remote |
Data Sheet |
Negotiable |
|
||||||||||||
 |
IRM-8751K-2 |
Everlight |
Infrared Receivers IR Receiver Module |
Data Sheet |
|
|
||||||||||||
|
IRM-8751K-1 |
Everlight |
Infrared Receivers IR Receiver Module |
Data Sheet |
|
|
||||||||||||
|
IRM-8751-5 |
Everlight |
Infrared Receivers Infrared Remote |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-8751-2 |
Everlight |
Infrared Receivers Infrared Remote |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-8751-P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
