Product Summary

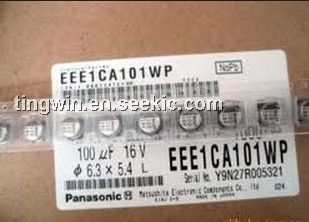

The EEE1CA101WP is a Surface Mount Type Aluminum Electrolytic Capacitor.
Parametrics
EEE1CA101WP absolute maximum ratings: (1)Category Temp. Range: -40 °C to +85 °C; (2)Rated W.V. Range: 4 V.DC to 100 V.DC; (3)Nominal Cap. Range: 0.1 uF to 1500 uF; (4)Capacitance Tolerance: ±20 % (120 Hz/+20 °C); (5)DC Leakage Current: I < 0.01 CV or 3 (µA)(Bi-Polar I < 0.02 CV or 6 (µA)After 2 minutes(Whichever is greater).
Features
EEE1CA101WP features:Endurance: (1)Endurance: 85 °C 2000 h; (2)Vibration-proof product is available upon request. (8 mm and larger); (3)RoHS directive compliant.

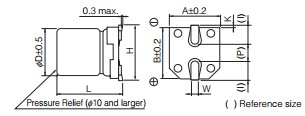

Diagrams
