Product Summary
The ATV2500H-30KC is a High-Density UV-Erasable Programmable Logic Device. The ATV2500H-30KC is the most powerful programmable logic device available in a 40-pin package. Increased product terms, sum terms, and flip-flops translate into many more usable gates. High gate utilization is easily obtainable. The ATV2500H-30KC is organized around a global bus. All pin and feedback terms are always available to every logic cell. Each of the 38 logic pins and their complements are array inputs, as well as the true and false outputs of each of the 48 flip-flops.
Parametrics
ATV2500H-30KC absolute maximum ratings: (1)Temperature Under Bias: -55°C to + 125°C; (2)Storage Temperature: -65°C to + 150°C; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on Input Pins with Respect to Ground During Programming: -2.0V to +14.0V; (5)Programming Voltage with Respect to Ground: -2.0V to +14.0V.
Features
ATV2500H-30KC features: (1)Third Generation Programmable Logic Structure: Easily Achieves Gate Utilization Factors of 80 Percent; (2)Increased Logic Flexibility: 86 Inputs and 72 Sum Terms; (3)Flexible Output Macrocell: 48 Flip-Flops - 2 per Macrocell, 3 Sum Terms - Can Be ORed and Shared; (4)High-Speed; (5)Low-Power — Less than 0.5 mA Typical (ATV2500L); (6)Multiple Feedback Paths Provide for Buried State Machines and I/O Bus Compatibility; (7)Asynchronous Clocks and Resets: Multiple Synchronous Presets - One per Four or Eight Flip-Flop.

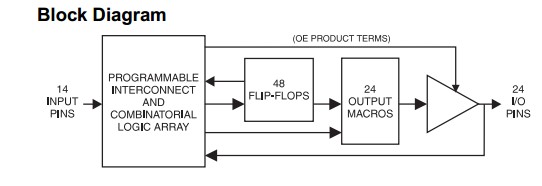

Diagrams
