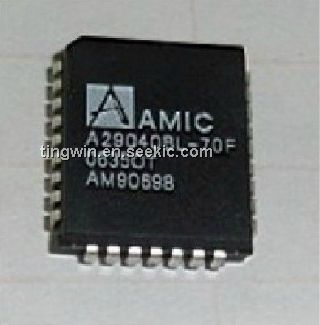

Product Summary
The A29040BL-70F is a 5.0 volt-only Flash memory organized as 524,288 bytes of 8 bits each. The 512 Kbytes of data are further divided into eight sectors of 64 Kbytes each for flexible sector erase capability. The 8 bits of data appear on I/O0 - I/O7 while the addresses are input on A0 to A18. The A29040BL-70F is offered in 32-pin PLCC, TSOP, and PDIP packages.
Parametrics
A29040BL-70F absolute maximum ratings:(1)Ambient Operating Temperature: -55°C to + 125°C; (2)Storage Temperature: -65°C to + 125°C; (3)VCC to Ground: -2.0V to 7.0V; (4)Output Voltage (Note 1): -2.0V to 7.0V; (5)A9 & OE: -2.0V to 12.5V; (6)All other pins: -2.0V to 7.0V; (7)Output Short Circuit Current: 200mA.
Features
A29040BL-70F features:(1)5.0V±10% for read and write operations; (2) Access times:55/70/90 (max.); (3)Current:-20 mA typical active read current; 30 mA typical program/erase current; (7)- 1μA typical CMOS standby; (4)Flexible sector architecture:8 uniform sectors of 64 Kbyte each; Any combination of sectors can be erased; Supports full chip erase; Sector protection:A hardware method of protecting sectors to prevent any inadvertent program or erase operations within that sector; (5)Extended operating temperature range: -40°C~+85°C for -U series; (6)Embedded Erase Algorithms:Embedded Erase algorithm will automatically erase the entire chip or any combination of designated sectors and verify the erased sectors; Embedded Program algorithm automatically writes and verifies bytes at specified addresses; (7)Typical 100,000 program/erase cycles per sector; (8)20-year data retention at 125°C: Reliable operation for the life of the system; (9)Compatible with JEDEC-standards:Pinout and software compatible with single-powersupply Flash memory standard; Superior inadvertent write protection; (10)Data Polling and toggle bits:Provides a software method of detecting completion of program or erase operations; (11)Erase Suspend/Erase Resume: Suspends a sector erase operation to read data from or program data to, a non-erasing sector, then resumes the erase operation; (12)Package options:32-pin P-DIP, PLCC, or TSOP (Forward type).

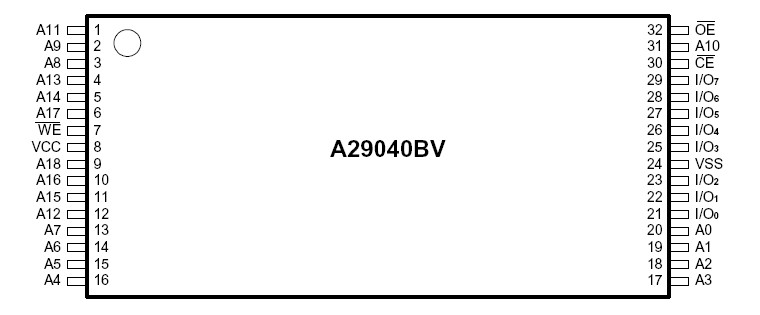

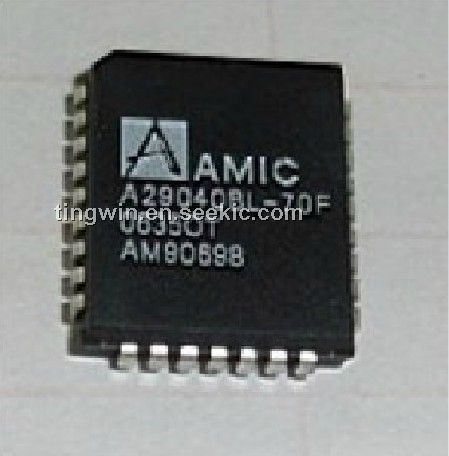

Diagrams
