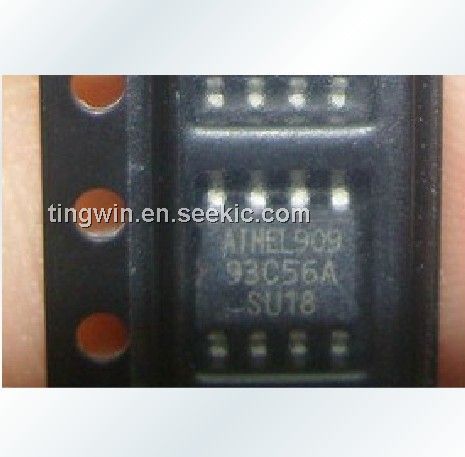

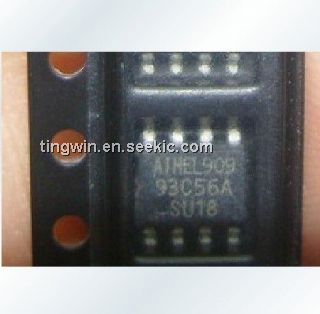

93C56

93C56, 1.8 to 6.0 Volt, Microwire Serial E2PROM, SOIC, 1.0W, 100mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.80 / Piece
101 ~ 300 :	1.50 / Piece

PartNumber:: 93C56

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. winny's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-10

From Other Seller

Part Number:93C56
US $1.50 - 1.80
93C56S

US $0.50 - 0.75 / Piece
(0) Remove
Quantity:

piece

Product Summary

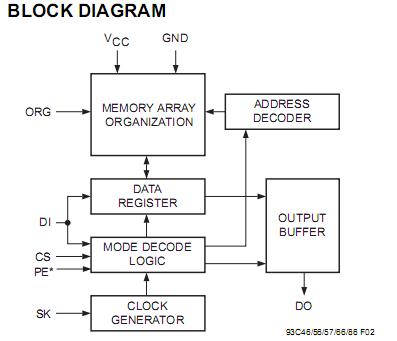

The 93C56 is a Microwire Serial E2PROM memory device which is configured as either registers of 16 bits(ORG pin at VCC) or 8 bits(ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The 93C56 is manufactured using Catalyst’s advanced CMOS E2PROM floating gate technology. The 93C56 is designed to endure 1,000,000 program/erase cycles and has a data retention of 100 years. The device is available in 8-pin DIP, 8-pin SOIC or 8-pin TSSOP packages.

Parametrics

93C56 absolute maximum ratings: (1)Temperature Under Bias:–55℃ to +125℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on any Pin with Respect to Ground:–2.0V to +VCC +2.0V; (4)VCC with Respect to Ground:–2.0V to +7.0V; (5)Package Power Dissipation Capability (Ta = 25℃):1.0W; (6)Lead Soldering Temperature (10 secs):300℃; (7)Output Short Circuit Current:100 mA.

Features

93C56 features: (1)Low Power CMOS Technology; (2)1.8 to 6.0 Volt Operation; (3)Selectable x8 or x16 Memory Organization; (4)Self-Timed Write Cycle with Auto-Clear; (5)Hardware and Software Write Protection; (6)Power-Up Inadvertant Write Protection; (7)1,000,000 Program/Erase Cycles; (8)100 Year Data Retention; (9)Commercial, Industrial and Automotive Temperature Ranges.
