Product Summary

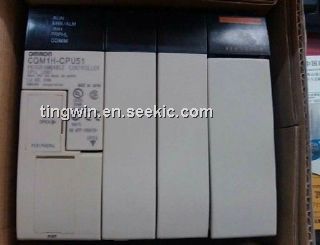

The cqm1h-cpu51 is a programmable controller. The rack-less modular design of the cqm1h-cpu51 lets you customize your control system by adding inner board for advanced functions, as well as specialized I/O and communications modules. The cqm1h-cpu51 offers the most flexibility of all PLC systems in its class.

Parametrics

cqm1h-cpu51 absolute maximum ratings: (1) supply voltage: 100 to 240VAC,50/60Hz; (2) Operatingvoltage range: 85 to 264VAC; (3) Operating frequency range: 47 to 63Hz; (4) Powerconsumption: 60VA max.

Features

cqm1h-cpu51 features: (1) 4 different base CPUs t ochoose from;16DC inputs built in; expands upto 512 points; (2) No separate backplane required; (3) Serial communications inner board supports protocol macro feature for communication with third-party serial devices; (4) Supports all existing and new CQM1I/O and specialized I/O modules; (5) Optional memory cassettes allow backup of sensitive data ,provides a real-time clock; (6) Controller Link network transmits 8 kword data packets at up to 2 Mbps; 32 nodes; (7) Advanced instruction set includes PID,floating point math, protocol macro instructions and more; (8) CompoBus/S, SYSMAC BUS and AS-interface masters; (9) Up to 15.2 kwords of programmemory.

Diagrams

cqm1h-cpu51 Circuit
